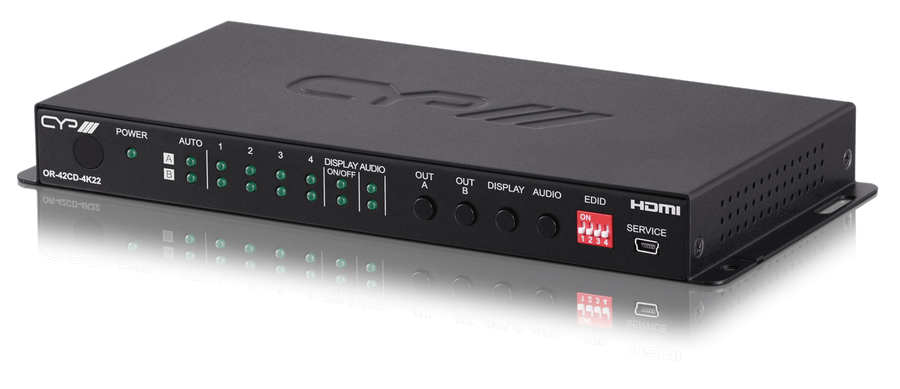

Matrix Switcher HDMI2.0 UHD/ 4K/ HDCP2.2 4x2 OR-42CD-4K22
OR42CD4K22
This 4x2 HDMI Matrix Switcher is designed to enable the user to switch between any of the four connected HDMI sources to send video and audio to either of the two connected HDMI displays. This matrix switcher fully supports 4K resolutions and is HDMI2.0 and HDCP 2.2 compliant, ensuring maximum compatibility with the latest 4K UHD sources and displays. The unit supports all the latest features of the HDMI2.0 specification such as 4K UHD resolutions (4K2K@60Hz - YUV4:4:4),HDR (High Dynamic Range), -Deep Color-, and High Definition audio. Control is via manual selection buttons, IR, RS-232, Telnet or Web GUI.
Legen Sie dieses produkte in den Beraterkorb und fordern Sie anschlieÃend eine kostenlose Beratung an!
Description
Technical Specification

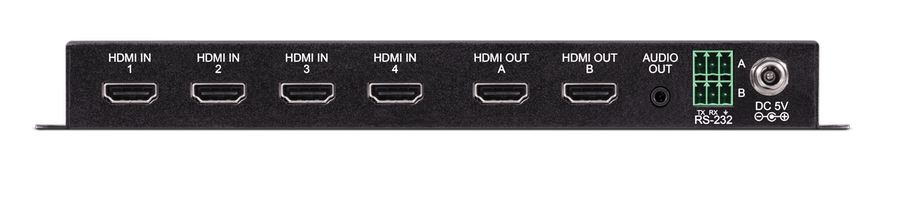

Inputs:
4 x HDMI female
Outputs:
2 x HDMI female
1 x 3,5mm Stereo mini jack female (analogue Audio)

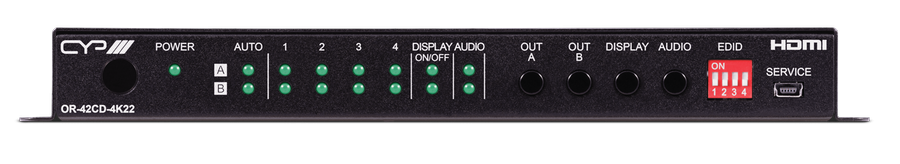

Control options:
Frontpanel, RS232 or IR
Solutions supported:
VGA bis WUXGA und 480i bis 1080p und bis 4K/ UHD@60Hz 4:4:4 8 bit
Formats supported:
Video: 4K, 2K, HDMI2.0, HDCP2.2 und DVI (10 & 12 bit HDR)
Audio: 8 channel LPCM, Bitstream, and HD Bitstream pass-through
