Matrix switcher HDMI2.0 UHD/ 4K / HDCP2.2 6x2 OR-HD62CD-4K22
ORHD62CD4K22

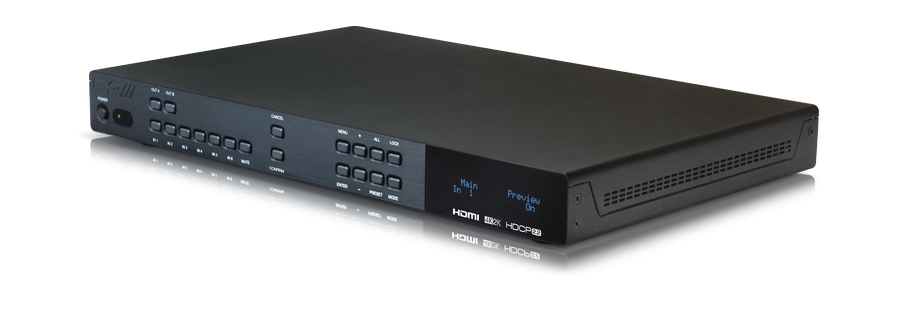

The OR-HD62CD-4K22 is an advanced 4K UHD HDMI matrix switcher designed for both commercial and residential applications. The 6 x 2 HDMI matrix switch enables 4K UHD HDCP 2.2 HDMI signals to be routed from any of the six HDMI inputs to either of the two independent HDMI outputs. Additionally a cutting edge picture in picture (PIP) preview mode can be selected where the unselected sources (excluding 3D and 4K UHD) are displayed in a row of 5 small windows overlaid on top of the primary selected source. In preview mode, both HDMI outputs show identical feeds. Further features include fast switching technology, on-board EDID management tool (via on screen display) and optical audio de-embedding for added flexibility of installation. Control is via front panel buttons, IR remote control, RS232, Telnet or IP control for easy integration into control systems.
Legen Sie dieses produkte in den Beraterkorb und fordern Sie anschlieÃend eine kostenlose Beratung an!
Description
Technical Specification

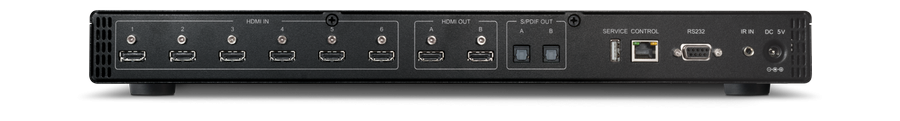

Inputs:
6 x HDMI female
1 x IR female
Outputs:
2 x HDMI female
2 x Toslink female
Control options:

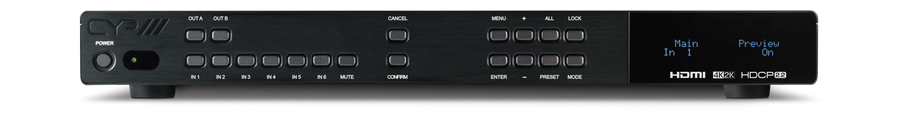

Frontpanel, RS232, LAN or IR / USB (Service)
Solutions supported:
640x480 to 1920x1200 and 480i to 1080p and UHD/ 4K@60Hz (YUV 4:2:2)
Formats supported:
Video: HDMI2.0, HDCP2.2 and DVI1.0
Audio: Dolby TrueHD, Dolby Digital Plus, DTS-HD Master Audio + LPCM
