Matrix Switcher HDMI2.0 UHD/4K/, USB3.0/USB-C, Audio 3x2 OR-32USBC-4K22
OR32USBC4K22
The OR-32USBC-4K22 matrix switch is designed for use in environments needing a wide range of flexibility when it comes to inputs, outputs, and control. The two most common video input interfaces (HDMI, USB-C) are included along with a pair of HDMI outputs, providing the ultimate in source compatibility and flexibility. This unit is HDCP 2.2 compliant and supports resolutions up to a maximum of 4K@60Hz (4:4:4, 8-bit) and HDMI output A supports 4K downscaling to 1080p. The included USB-C input runs on the USB3.0 specs and supports AV, device charging as well as network connection.
Legen Sie dieses produkte in den Beraterkorb und fordern Sie anschlieÃend eine kostenlose Beratung an!
Description
Technical Specification

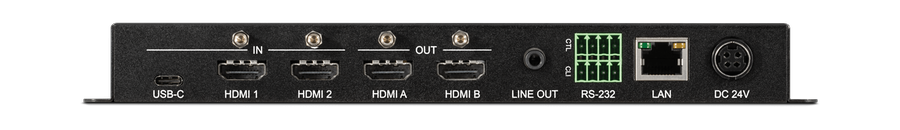

Inputs:
1 x USB-C female
2 x HDMI female
Outputs:
2 x HDMI female
1 x 3,5mm Stereo mini jack female (analogue Audio)

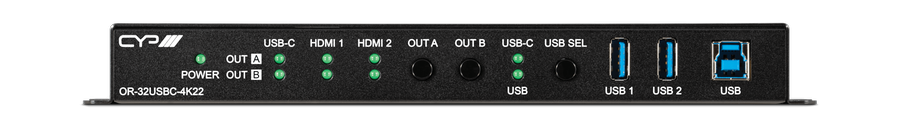

Control options:
Frontpanel, RS232, IP or IR
Solutions supported:
VGA bis WUXGA und 480i bis 1080p und bis 4K/ UHD@60Hz 4:4:4 8 bit or 12 bit
Formats supported:
Video: 4K, 2K, HDMI2.0, HDCP2.2 und DVI (8 oder 12 bit HDR)
Audio: 8 channel LPCM, Bitstream, and HD Bitstream pass-through
USB: 3.0
