Matrix switcher max. 3G-SDI 4x2 MSC-HD42L
MSCXD42L
The MSC-XD42L SDI routing switcher has 4 inputs and 2 outputs, supports reclocking of standard 3G/HD/SD SDI rates, automatic bypass of non-standard rates between 20 Mbit/s and 3 Gbit/s, and passes all SDI embedded audio/ancillary data. In addition any output can be independently muted. Switch on vertical sync is provided with the sync reference input with a pass-through connector and provides support for Tri-level sync and NTSC/PAL black burst signals.
Legen Sie dieses produkte in den Beraterkorb und fordern Sie anschlieÃend eine kostenlose Beratung an!
Description
Technical Specification

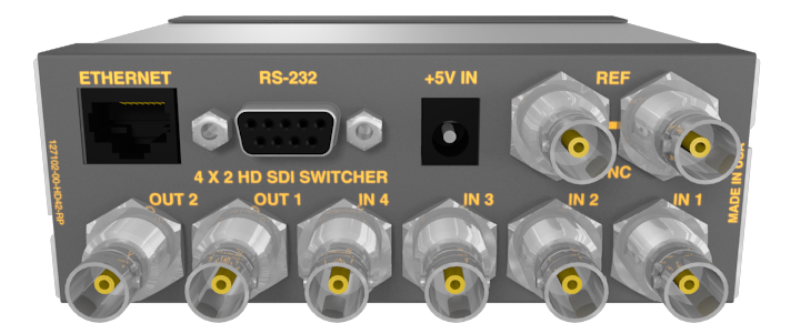

Inputs:
4 x BNC female
1 x D Sub 9 Pin female (RS232)
1 x RJ45 female (Ethernet)
2 x BNC female In/ Out (Ref. Sync)
Outputs:
2 x BNC female
Control options:
Frontpanel, Ethernet, RS232
Resolutions supported: (SD-SDI)
625i@25Hz PAL und 525i@29.97Hz NTSC
Resolutions supported: (HD-SDI)
720p@23.98/ 24/ 25/ 29.97/ 30/ 50/ 59.94/ 60Hz
1080i@50/ 59.94/ 60Hz
1080p23.98/ sF23.98/ 24/ sF24/ 25/ sF25/ 29.97/ sF29.97/ 30/ sF30Hz
Resolutions supported: (3G-SDI)
1080p@50/ 59.94/ 60Hz
Resolutions supported: (2K)
2048x1556@p23.98/ 24/ 25Hz
Formats supported:
Video: SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 310M, SMPTE 425M-A, SMPTE 425M-B, ITU-R BT.656 und ITU-R BT.601
Video Sampling: 4:2:2 and 4:4:4
Color Space: YUV oder RGB
Audio Sampling: 24bit@48KHz
