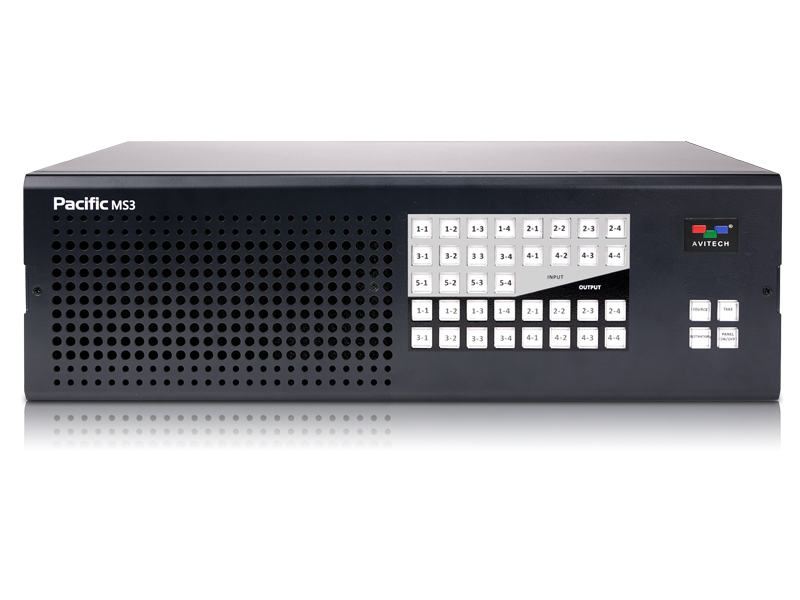

Matrix switcher/ Multiviewer enclosure 9 Slot 20x16 Pacific MS-3C

Hersteller

PacificMS3C

Allows to input up to four HDMI video signals (optional Audio/ USB) and output them to one single display. The embedded software allows for seamless sizing and positioning of input windows.

€ 7.390,00 Excl. VAT .

Legen Sie dieses produkte in den Beraterkorb und fordern Sie anschließend eine kostenlose Beratung an!

Description


Technical Specification

Inputs Front panel:
1 x USB-B female
2 x USB-A feamle
1 x analog Audio

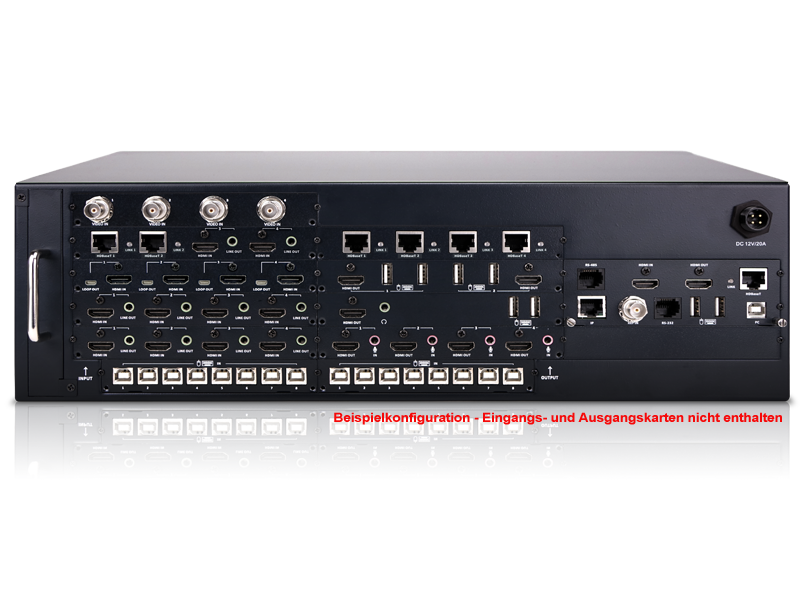

Inputs Back panel:
4 x HDMI feamle
4 x D-Sub male
Outputs Front panel:
1 x analog Audio
2 x Speaker (Stereo)
Otuputs Back panel:
1 x HDMI female
Control options:
LAN
Resolutions supported:
640x480 to 1920x1200 and 480i to 1080p
Formats supported:
Video: HDMI, HDCP 1.1 and DVI 1.0
Audio: 7.1 Surround sound

Producer
AVITECH
Product
PacificMS3C
Gehäuse
Metall
Weight (kg)
7,25
Color
Schwarz
Power supply type
extern
Stromversorgung
12 V/ 10 A
Operating
0°C - + 40°C
Abmessungen BxHxT mm
439 x 88 x 246 mm
Artikel Nr.
6801
