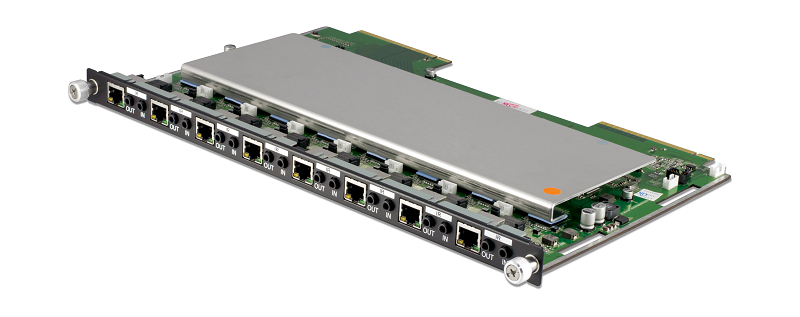

Matrix switcher Outputcard 8 x HDBaseT 2K, 4K/ IR OUT-HBT5P-4K-8
OUTHBT5P4K8
This input module enables you to connect 8x HDBaseT signals. The HDBaseT standard support HDMI 2K, 4K/ LAN/ RS232/ IR/ PoC (Power over cable) up to 100m. Work with Enclosure MOD-16 & MOD-32.
Preis auf Anfrage
Legen Sie dieses produkte in den Beraterkorb und fordern Sie anschlieÃend eine kostenlose Beratung an!
Description
Technical Specification
Inputs:
1 x 3,5mm jack female for IR
Outputs:
8 x RJ 45 female
1 x 3,5mm jack female for IR
Resolutions supported:
VGA, SVGA, XGA, WXGA, SXGA, UXGA, WUXGA und 480i bis 1080p and 2K, 4K
Formats supported:
Video: HDMI (225 MHz/ 6,75 Gbps), HDCP1.1 and DVI 1.0
Audio: LPCM7.1CH, Dolby TrueHD, Dolby Digital Plus, DTS-HD Master Audio (32-192kHz Fs sample rate)
Producer
CYP Europe
Product
OUTHBT5P4K8
Gehäuse
Metall
Weight (kg)
14,40
Color
Schwarz
Operating
0°C - 40°C
Abmessungen BxHxT mm
482 x 145 x 484
Artikel Nr.
6028
