OUTX2100AVLC

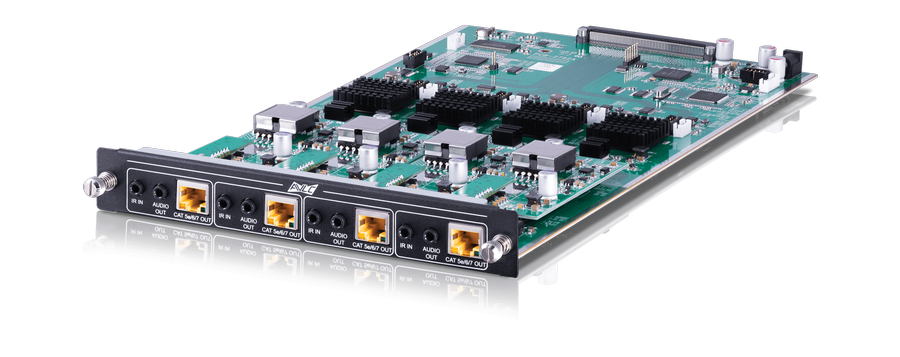

This output module deliver HDBaseT (AVLC) signal & 4 analogue Audio signals. The max. resolution is UHD/ 4K@60Hz 4:4:4 8 bit with HDR10 & Dolby Vision. Work with Enclosure MODX-16
Legen Sie dieses produkte in den Beraterkorb und fordern Sie anschlieÃend eine kostenlose Beratung an!
Technical Specification
Inputs:
4 x 3,5mm mini Jack femlae (IR)
Outputs:

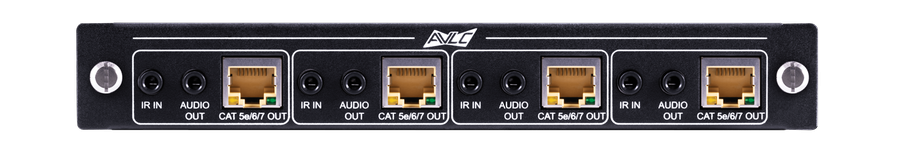

4 x RJ45 female (HDBaseT)
4 x 3,5mm mini Jack femlae (Audio)
Resolutions supported:
640x480 to 1920x1200 and 480i to 1080p and UHD/ 4K@60Hz 4:4:4 8 bit
Formats supported:
Video: HDMI2.0 AVLC, HDCP1.1/ 2.2, DVI1.0
Audio: LPCM 2.0/5.1/7.1
