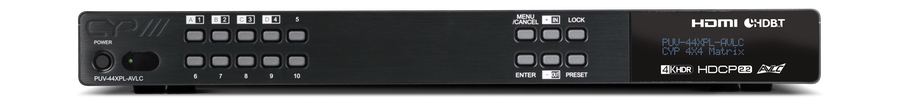

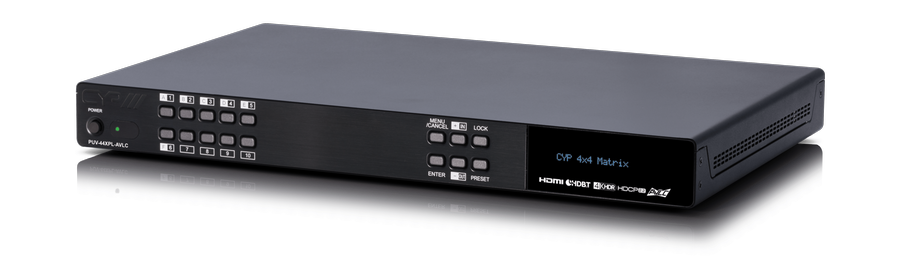

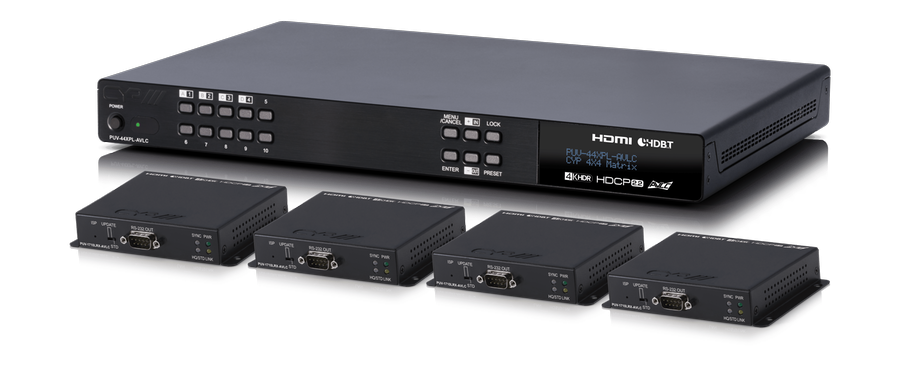

Matrixswitcher Set/ 4xRX (HDBTLITE2) 4x4 HDMI2.0 UHD 60m PUV-44XPL-AVLC-KIT
PUV44XPLAVLCKIT
The PUV-44XPL-AVLC is a Matrix with 4 HDMI IN and 4 HDBaseT LITE OUT (Resolutions up to 4K UHD 10/12-bit HDR & Dolby Vision, HDCP 2.2, HDMI2.0 and multi-channel digital audio). This product enables data rates of up to 18Gbps to be transmitted using AVLC (Adaptive Visually Lossless Compression) Technology. It can transmit up to 4K@60Hz (4:4:4 8-bit) as well as 10/12 bit sources with HDR (including Dolby Vision). Output scaling on two if the HDBaseT outputs. Tansmisson via CAT5e/6/7 cable up to 60 m (40m HDR). It features also analog audio breakout. Rx are powered from the matrix. Controllable via WebGUI, RS232, IR and Buttons.
Legen Sie dieses produkte in den Beraterkorb und fordern Sie anschlieÃend eine kostenlose Beratung an!
Description
Technical Specification

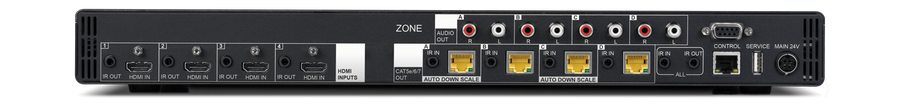

Inputs:
4 x HDMI female
4 x 3,5 mm female for IR
1 x 9 Pin Sub-D (RS 232)
1 x RJ45 LAN for Firmware Update or control
1x USB for Service
Outputs:
4 x RJ45 female (HDBaseTLITE)
2 x HDMI female
4 x 3,5 mm female for IR
Control options:
Frontpanel, RS232, LAN oder IR
Resolutions supported:
VGA to WUXGA and 480i to 1080p und 4K/ UHD@24/25/30Hz (RGB 4:4:4 & YUV 4:2:2), 4K UHD@60Hz (YUV 4:2:0), 4K/2K@24/25/30Hz (RGB 4:4:4 & YUV 4:2:2) and 4K/2K@60Hz (YUV 4:2:0)
Formats supported:
Video: HDMI2.0, HDCP1.4/ 2.2 und DVI 1.0 (Deep Color 10 & 12 bit)
Audio: LPCM 2/5.1/7.1CH, Dolby Digital 2/5.1CH, Dolby Digital Plus, Dolby TrueHD, Dolby Atmos und DTS-HD Master Audio
