Mediaplayer 3840x2160@60Hz, Netzwerk, USB, RS232, 8 GPIO HD1024

Hersteller

HD1024

Full screen or multi screen layouts, looping playlists, webside HTML5 (Mainstream), Update content via LAN, interactiv solutions with GPIOs, RS232, touch screen via USB, USB possible, synchronisation of several media players, online reports, text ticker or RSS feeds, world clock with date.

Preis auf Anfrage

Legen Sie dieses produkte in den Beraterkorb und fordern Sie anschließend eine kostenlose Beratung an!

Description


Technical Specification

Input:
1 x Micro SDXC slot (up to 2TB)
Outputs:
1 x HDMI female
1 x 3,5mm mini Jack Audio female (analog & digital)
Control options:
LAN (Gbit), WLAN optional, CEC, USB (1A), RS232, 8 GPIO
Resolutions supported: (UHD)
4096x2160, 3840x2160, 3840x600
Resolutions supported: (Upscaling)
3840x2160x24/ 25/ 29.97/ 30Hz
Resolutions supported:
1920x1080@24/ 25/ 29.92 /30 /50 /59.94 /60Hz,
1920x1080x50/ 59.94 /60i, 1600x1200x60Hz, 1440x1050x60/ 75Hz, 1440x900x60/ 75Hz, 1360x768x60Hz, 1280x1024x60/ 75Hz, 1280x960x60Hz, 1280x800x60 /75Hz, 1280x768x60Hz,
1280x720x50/ 59.94/ 60Hz, 1024x768x60Hz, 800x600x60/ 75Hz, 720x576x50Hz/50i, 720x480x59.94/ 60Hz/60i, 640x480x60Hz
Formats supported:
Video: H.265, H.264(MPEG-4, Part 10), MPEG-2 und MPEG-1
Video codec: .ts, .mpg, .vob, .mov, .mp4, .m2ts, .wmv
Bild: BMP, JPEG und PNG (not 4K images)
Audio: MP2, MP3, AAC, WAV (AC3 5.1 Audio pass trough)
HTML5: Mainstream

Producer
BrightSign LLC
Product
HD1024
Gehäuse
Metall
Weight (kg)
0,90
Color
Lila
Power supply type
Extern
Stromversorgung
12V, 1,5A (18 Watt)
Operating
-20° - +70° C

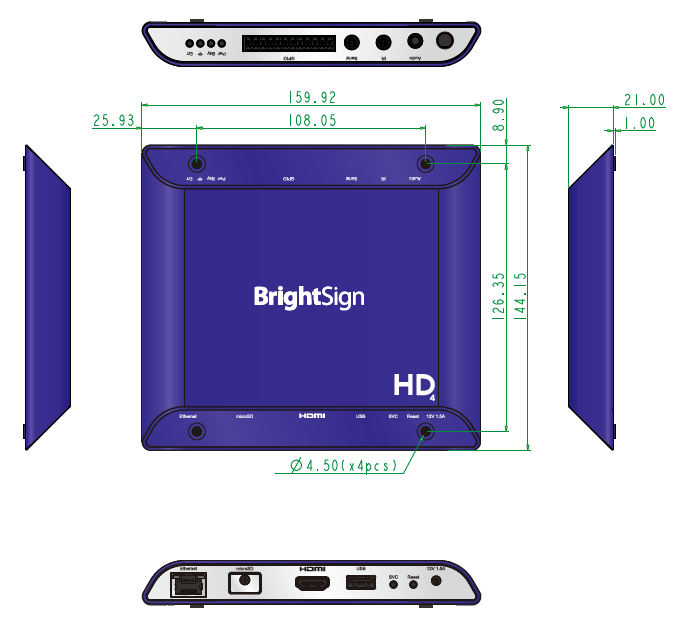

Abmessungen BxHxT mm
159,9 x 22 x 144,2 mm
Artikel Nr.
7649
