Mediaplayer easescreen image UHD@60Hz, LAN, 3 USB, RS232, 8 GPIO, PoE+ XD1035es
XD1035es
Full screen or multi screen layouts, 4K video with HDR10 and HLG, looping playlists, webside HTML5 (Enterprise), Update content via LAN, interactiv solutions with GPIOs, RS232, touch screen , USB possible, synchronisation of several media players, online reports, text ticker or RSS feeds, world clock with date.
Legen Sie dieses produkte in den Beraterkorb und fordern Sie anschlieÃend eine kostenlose Beratung an!
Description
Technical Specification

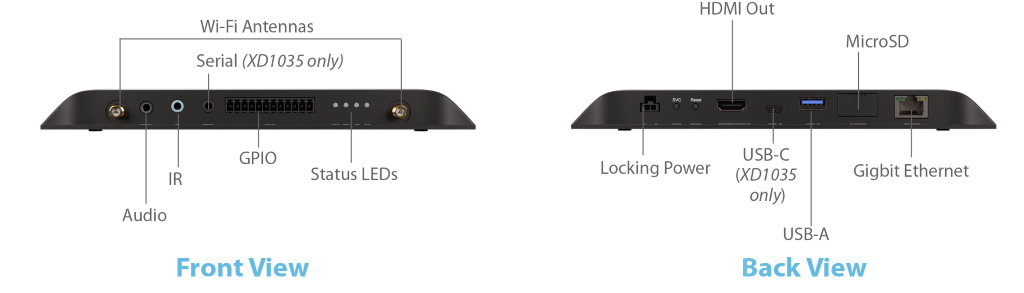

Input:
1 x Micro SDXC Slot with Micro SD card 128 GB with easescreen Image (bis 2TB)
Outputs:
1 x HDMI female
1 x 3,5mm mini Jack Audio female (analog & digital)
Control options:
LAN Gbit (PoE+), WLAN optional, CEC, 2 USB A & C, RS232, 8 GPIO bi-directional, IR (In/ Out)
Resolutions supported: (UHD)
3840x2160x24/ 25/ 30/ 50/ 60Hz
Resolutions supported: (Upscaling)
3840x2160x24/ 25/ 29.97/ 30Hz
Resolutions supported: (Full HD)
1920x1080@24/ 25/ 29.92 /30 /50 /59.94 /60Hz,
1920x1080x50/ 59.94 /60i, 1600x1200x60Hz, 1440x1050x60/ 75Hz, 1440x900x60/ 75Hz, 1360x768x60Hz, 1280x1024x60/ 75Hz, 1280x960x60Hz, 1280x800x60 /75Hz, 1280x768x60Hz,
1280x720x50/ 59.94/ 60Hz, 1024x768x60Hz, 800x600x60/ 75Hz, 720x576x50Hz/50i, 720x480x59.94/ 60Hz/60i, 640x480x60Hz
Formats supported:
Video: H.265 (4K) .ts, .mov, .mp4, .mkv & H.264 (1920x1080)(MPEG-4, Part 10), MPEG-2 und MPEG-1
Video codec: .ts, .mpg, .vob, .mov, .mp4, .m2ts
Bild: BMP, JPEG and PNG
Audio: MP2, MP3, AAC, WAV (AC3 5.1 Audio pass trough)
HTML5: Enterprise
