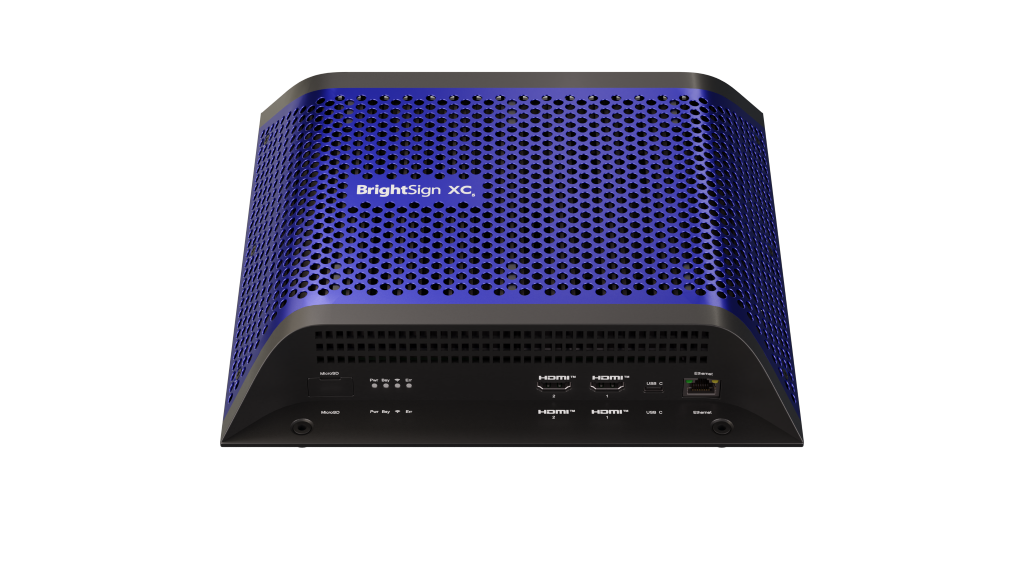

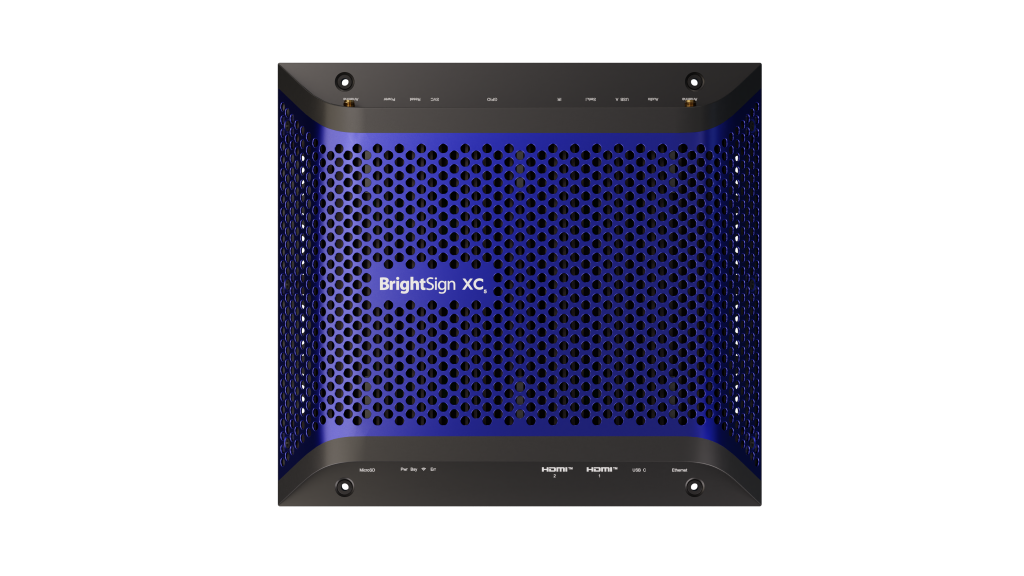

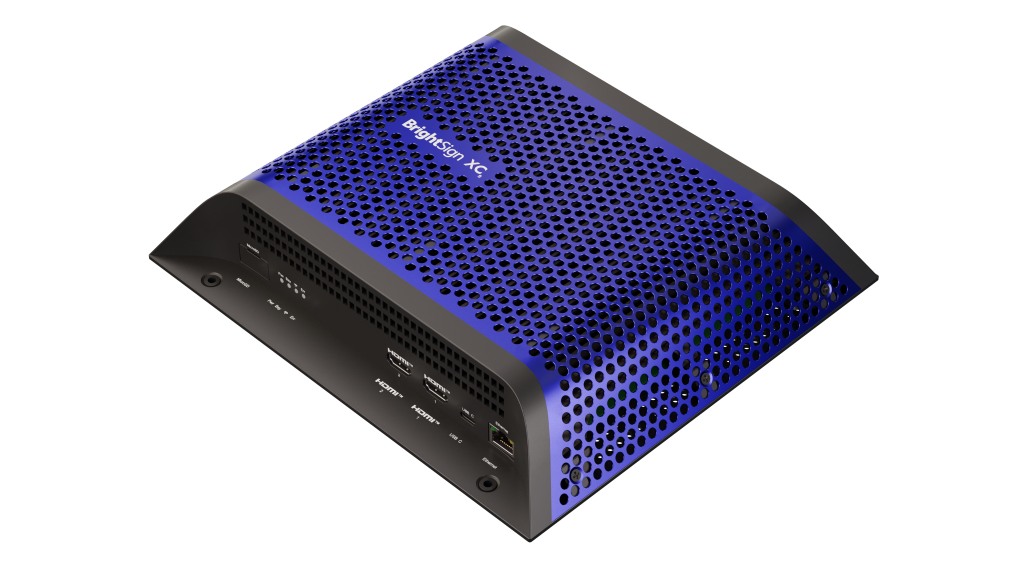

Mediaplayer Elite XC2055-Win10 IoT 8K 8bit, 2 HDMI OUT, LAN, 2 USB, RS232, GPIO
XC2055Win10

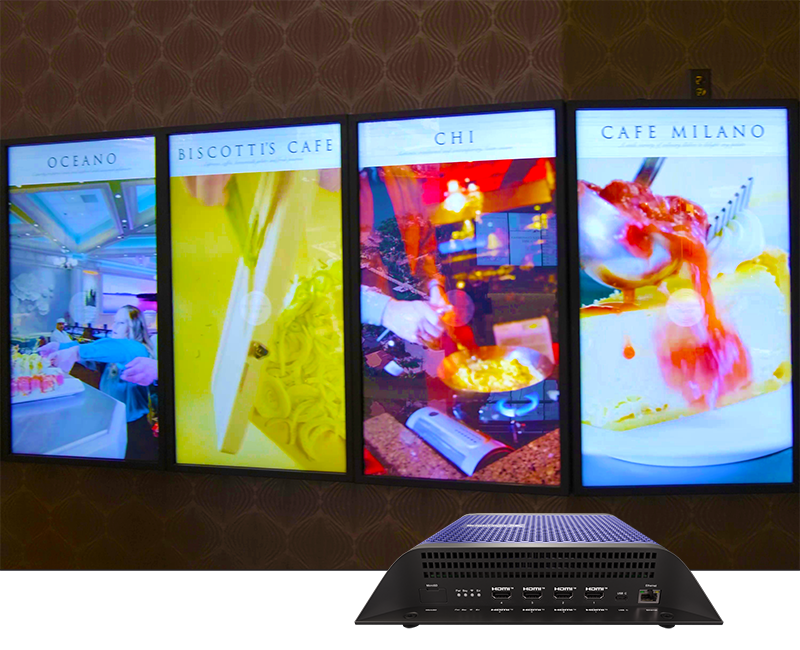

Multiple HDMI outputs, elite HTML performance and stunning 8K makes BrightSign XC5 the most powerful player in the digital signage industry. Custom built on our signature solid-state platform, BrightSign XC5 exceeds signage PCs in performance, reliability & longevity while powering up to 4 screens at once from a single player. Crafting video wall presentations are now hugely streamlined with multi-output players and the hardware accelerated 4K video rotation makes it even easier to deliver eye-catching multi-screen experiences. Highly sophisticated HTML content that supports 3D motion graphics, JavaScript and interactivity in 8K is yet another application where BrightSign XC5 can make your signage truly stand out. Redening digital signage applications across multiple displays and with powerful HTML is what BrightSign XC5 was designed for, making them the ideal choice to deliver expert experiences with condence.
Legen Sie dieses produkte in den Beraterkorb und fordern Sie anschlieÃend eine kostenlose Beratung an!
Description
Technical Specification
Input:
1 x Micro SDXC Slot (bis 2TB)

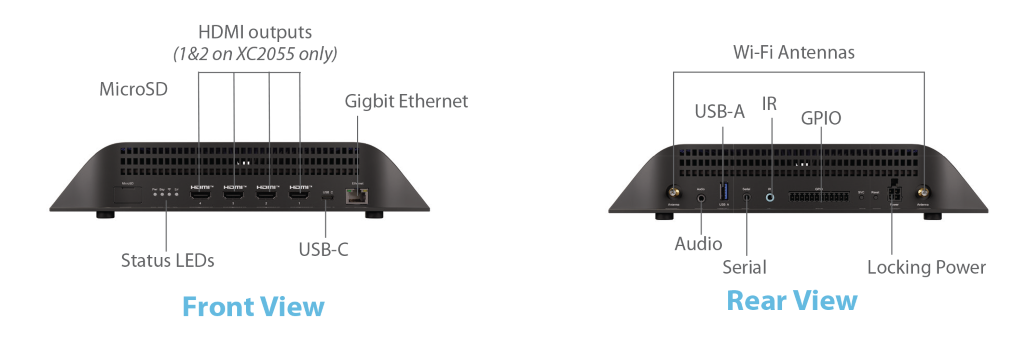

Outputs:
2 x HDMI female
1 x 3,5mm Klinke Audio Buchse (analog & digital)
Control options:
Netzwerk Gbit (PoE+), WLAN optional, CEC, 2 USB A & C, RS232, 12 Pin 8 GPIO, IR (In/ Out)
Resolutions supported: (8K & UHD)
8K@60Hz, 3840x2160x24/ 25/ 30/ 50/ 60Hz
Resolutions supported: (Upscaling)
3840x2160x24/ 25/ 29.97/ 30Hz
Resolutions supported: (Full HD)
1920x1080@24/ 25/ 29.92 /30 /50 /59.94 /60Hz,
1920x1080x50/ 59.94 /60i, 1600x1200x60Hz, 1440x1050x60/ 75Hz, 1440x900x60/ 75Hz, 1360x768x60Hz, 1280x1024x60/ 75Hz, 1280x960x60Hz, 1280x800x60 /75Hz, 1280x768x60Hz,
1280x720x50/ 59.94/ 60Hz, 1024x768x60Hz, 800x600x60/ 75Hz, 720x576x50Hz/50i, 720x480x59.94/ 60Hz/60i, 640x480x60Hz
Formats supported:
Video: 8K: H.265 .ts, .mov, .mp4, .mkv
4K: H.265, H.264 .ts, .mov, .mp4, .mkv
1920x1080: H.265, H.264 (MPEG-4, Part 10), MPEG-2 .ts, .mov, .mp4, .mkv
Video codec: .ts, .mpg, .vob, .mov, .mp4, .m2ts
Bild: BMP, JPEG and PNG (8K resolution)
Audio: MP2, MP3, AAC, WAV (AC3 5.1 Audio pass trough)
HTML5: Elite
CPU: Intel Gen 11 Celeron with 8GB RAM
OS: Windows 10 IoT
