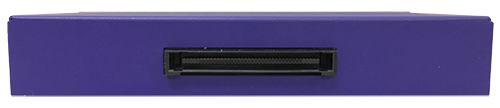

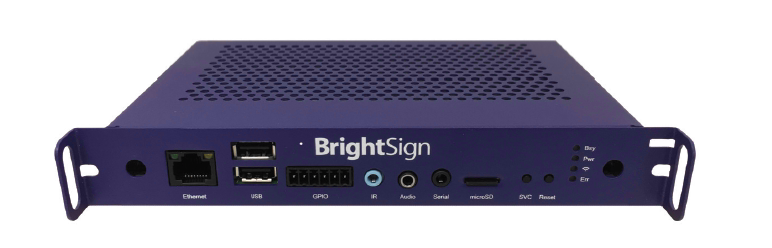

Mediaplayer OPS 1080p@60Hz, Netzwerk, USB, RS232, 4 GPIO HO523
HO523
Full screen or multi screen layouts, looping playlists, webside HTML5 (Mainstream), Update content via LAN, interactiv solutions with GPIOs, RS232, touch screen via USB, USB possible, synchronisation of several media players, online reports, text ticker or RSS feeds, world clock with date. Mediaplayer work only with an OPS slot.
Legen Sie dieses produkte in den Beraterkorb und fordern Sie anschlieÃend eine kostenlose Beratung an!
Description
Technical Specification
Input:
1 x Micro SDXC slot (up to 2TB)
Outputs:
1 x JAE female for HDMI1.4
1 x 3,5mm mini Jack Audio female (analog & digital)
Control options:
LAN (Gbit), WLAN optional, CEC, USB, RS232, 8 GPIO
Resolutions supported:
1920x1080@24/ 25/ 29.92 /30 /50 /59.94 /60Hz,
1920x1080x50/ 59.94 /60i, 1600x1200x60Hz, 1440x1050x60/ 75Hz, 1440x900x60/ 75Hz, 1360x768x60Hz, 1280x1024x60/ 75Hz, 1280x960x60Hz, 1280x800x60 /75Hz, 1280x768x60Hz,
1280x720x50/ 59.94/ 60Hz, 1024x768x60Hz, 800x600x60/ 75Hz, 720x576x50Hz/50i, 720x480x59.94/ 60Hz/60i, 640x480x60Hz
Formats supported:
Video: H.265, H.264(MPEG-4, Part 10), MPEG-2 und MPEG-1
Video codec: .ts, .mpg, .vob, .mov, .mp4, .m2ts, .wmv
Bild: BMP, JPEG und PNG
Audio: MP2, MP3, AAC, WAV (AC3 pass trough)
HTML5: Mainstream
