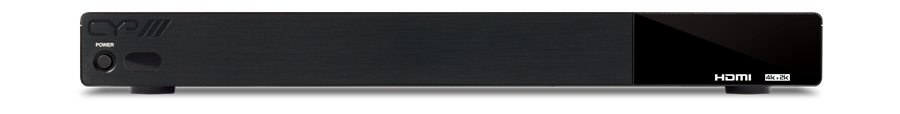

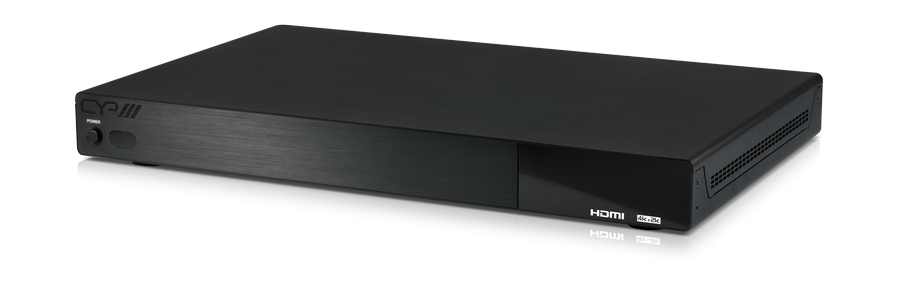

Multi-Screen controller HDMI 4K@30Hz 1:4 DS-MSC14-4K
DSMSC144K
The unit enables a 4K video wall to be created from any third party screens, the HDMI source can be displayed as a single image on each screen or 1 image across all screens. 24 configurations from 2x2 to 6x6 available. Multiple units can be combined with more DS-MSC14-4K to create larger video wall configurations.
Preis auf Anfrage
Legen Sie dieses produkte in den Beraterkorb und fordern Sie anschlieÃend eine kostenlose Beratung an!
Description
Technical Specification

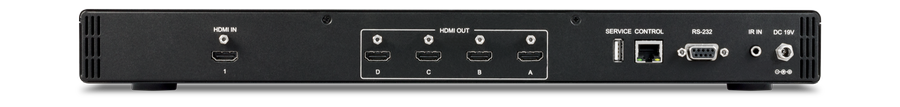

Input:
1 x HDMI
Outputs:
4 x HDMI
Control options:
RS232, Ethernet and IR / USB (Service)
640x480 to 1920x1200 and 480i to 1080p, 2K, 4K
Formats supported:
Video: 4K, 2K, HDMI, HDCP1.4 and DVI
Audio: LPCM 2CH, 6CH, 8CH/AC3/DTS/Dolby Digital Plus/ Dolby TruHD & DTS-HD
Producer
CYP Europe
Product
DSMSC144K
Gehäuse
Metall
Weight (kg)
3,00
Color
Schwarz
Power supply type
Extern
Stromversorgung
5V / 3,6A DC
Abmessungen BxHxT mm
250 x 50 x150
Artikel Nr.
6211
