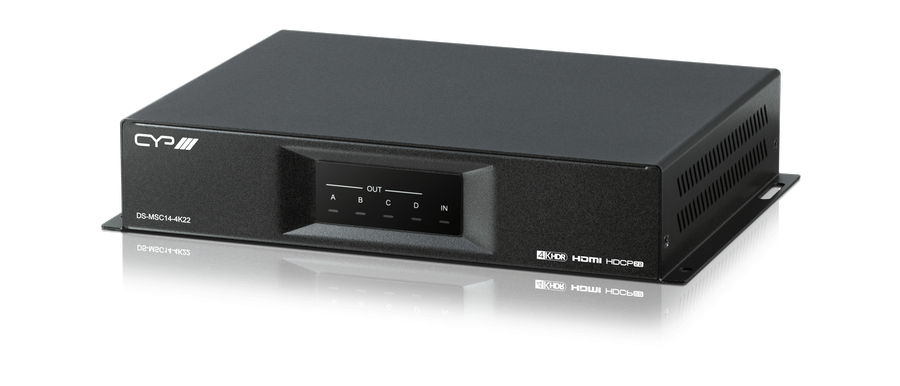

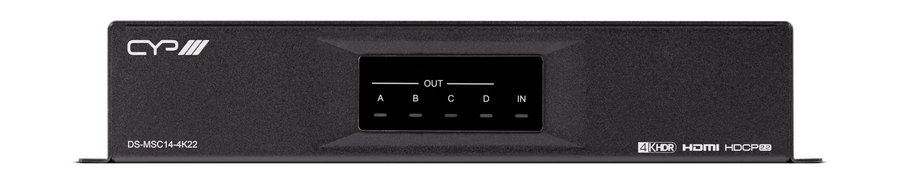

Multi-Screen controller HDMI2.0 UHD/ 4K / HDCP2.2 1:4 DS-MSC14-4K22
DSMSC144K22
The DS-MSC14-4K22 has been designed to provide an easier and more convenient way to create and deploy video wall installations. Delivering complete scalability, and capable of driving up to four 1080p displays, all from a single 4K UHD source. For larger installations multiple DS-MSC14-4K22 units can be combined to create up an 8x8 configuration. Each of the 4 outputs support 1080p@60Hz to generate a true 4K video wall. Built-in advanced EDID management, user configurations and advanced HDCP processing allows the DS-MSC14-4K22 to suit almost any installation scenario. Control is via RS-232, Telnet IP and PC application which allow full control of the DS-MSC14-4K22 from adjusting the bezel correction to pre-set video wall layouts.
Legen Sie dieses produkte in den Beraterkorb und fordern Sie anschlieÃend eine kostenlose Beratung an!
Description
Technical Specification

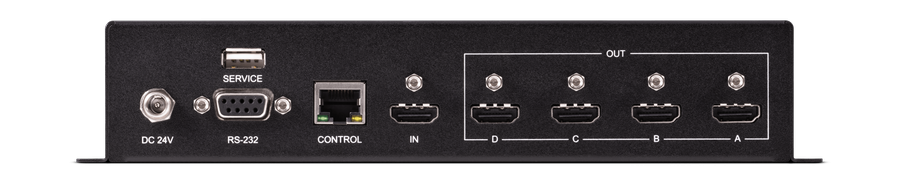

Input:
1 x HDMI
Outputs:
4 x HDMI
Control options:
RS232, Ethernet and IR / USB (Service)
640x480 to 1920x1200 and 480i to 1080p, 2K, 4K@60Hz 4:4:4 8 bit
Formats supported:
Video: 4K, 2K, HDMI, HDCP1.x/ 2.2, HDR and DVI
Audio: LPCM 2CH, 6CH, 8CH/AC3/DTS/Dolby Digital Plus/ Dolby TruHD & DTS-HD
