Multi-Screen Controller HDMI2.0 UHD/ 4K Rotation DS-VWC2-4K22

Hersteller

DSVWC24K22

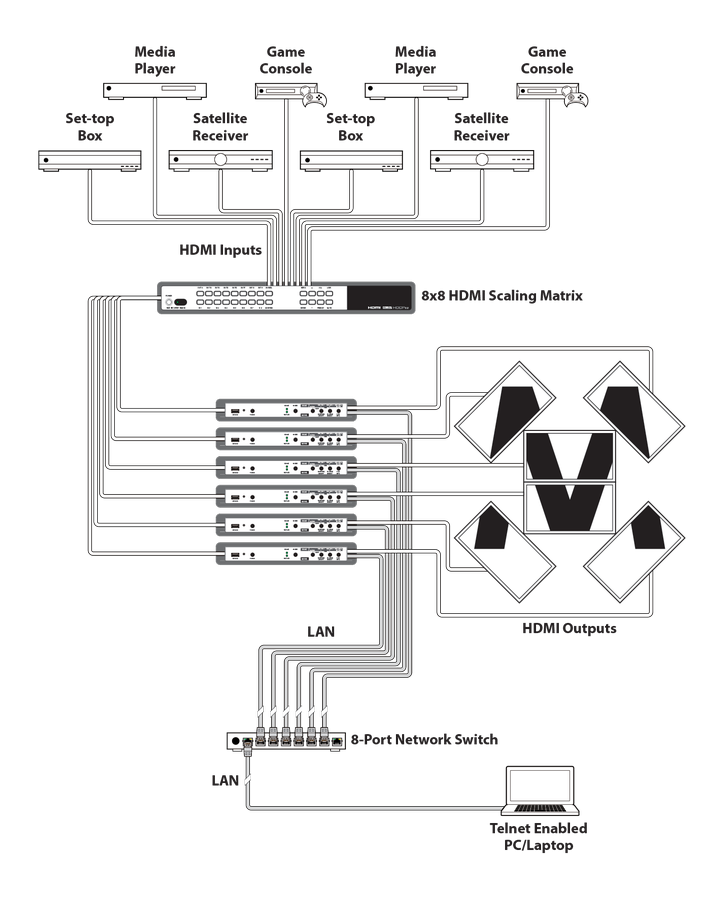

The unit enables a 4K HDMI with rotation for any third party screens. By combining multiple units with an HDMI distribution amplifier or matrix it is possible to create varied installation of rotated displays for large video wall applications. The latency is only 1 to 2 frames.

€ 995,00 Excl. VAT .

Legen Sie dieses produkte in den Beraterkorb und fordern Sie anschließend eine kostenlose Beratung an!

Description


Technical Specification

Input:
1 x HDMI
Output:
1 x HDMI
Control options:
RS232, Ethernet/ USB (Service)
640x480 to 1920x1200 and 480i to 1080p and 4K@50/60Hz 4:4:4, 8-bit
Formats supported:
Video: 2K, UHD/ 4K, HDMI2.0, HDCP1.4/ 2.2 and DVI
Audio: LPCM 2CH, 6CH, 8CH/AC3/DTS/Dolby Digital Plus/ Dolby TruHD & DTS-HD

Producer
CYP Europe
Product
DSVWC24K22
Gehäuse
Metall
Weight (kg)
0,90
Color
Schwarz
Power supply type
Extern
Stromversorgung
24 V / 2,7 A DC
Abmessungen BxHxT mm
231 x 25 x158 mm
Artikel Nr.
9159
