Multiviewer 4K/ 2K 4 HDMI/ 2 DP/ 1 VGA auf 1 HDMI 7x1 QuadView UHD
QuadViewUHD

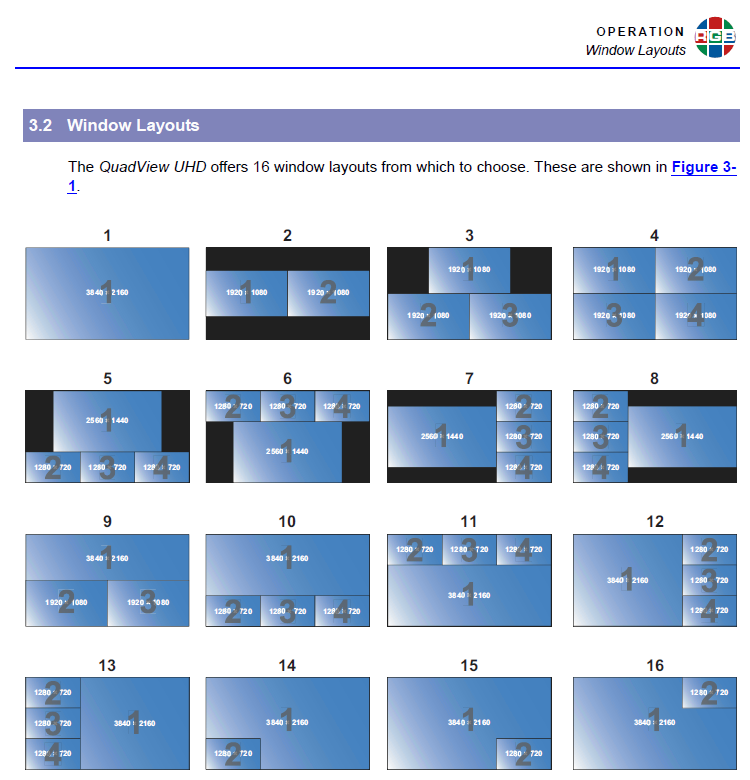

Allows to input up to 4 HDMI (3840x2160@30Hz), 2 Display Port, 1 VGA (RGB, YPbPr) with 7 Stereo Audio signals and with a HDMI with Stereo Audio (4 inputsignal on the same time) to one single display. 16 preset layouts available.
Legen Sie dieses produkte in den Beraterkorb und fordern Sie anschlieÃend eine kostenlose Beratung an!
Description
Technical Specification

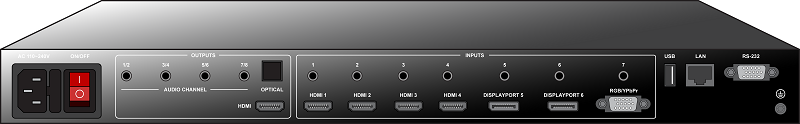

Inputs:
4 x HDMI
2 x Display Port
1 x VGA (RGB, YPbPr)
7 x Stereo Audio 3,5mm
Outputs:
1 x HDMI
1 x Stereo Audio 3,5mm

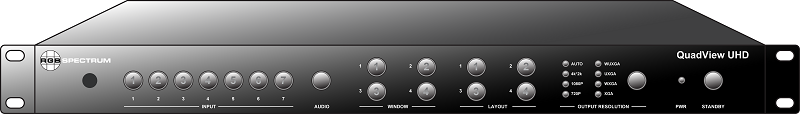

Control options:
Frontpanel, RS232, LAN, IR
Inputresolutions supported:
up to 3840x2160@30Hz
Outputresolutions supported:
3840x2160@30Hz, 1920x1200, 1920x1080, 1280x720,
1600x1200, 1280x800, 1024x768
Formats supported:
Video: HDMI1.4, Display Port, HDCP, RGB/YPbPr
Audio: Stereo Audio
