Multiviewer UHD,4K/ HDMI2.0 4x2 EL-42M-PIP
EL42MPIP

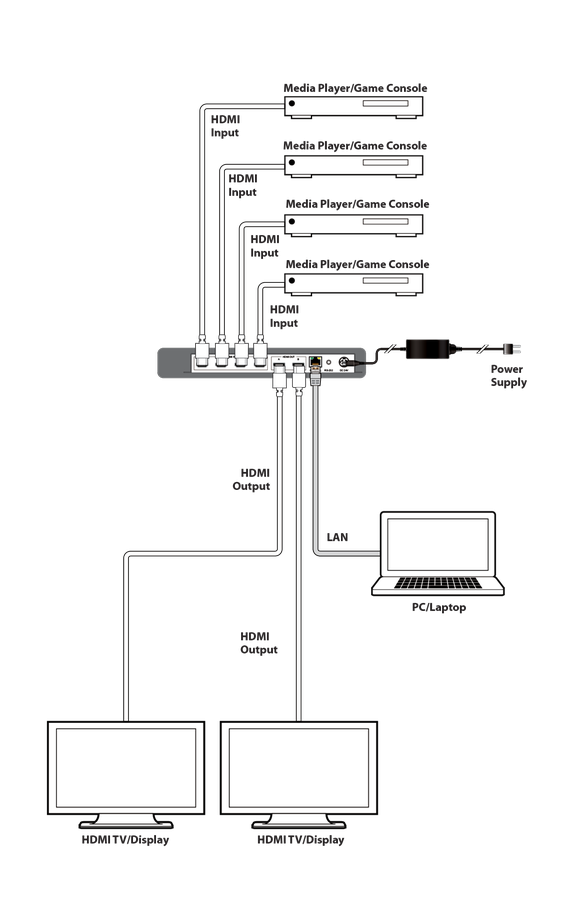

Accepts 4 high resolution HDMI/ DVI video signals and show this by 2 HDMI/ DVI monitor/ projektor. Resolutions up to UHD/ 4K@60Hz. The picture from all inputs can be Zoom, Shrink and Overlay by the output via Seamless switching. 4 presets available.
€ 1.495,00 Excl. VAT .
Legen Sie dieses produkte in den Beraterkorb und fordern Sie anschlieÃend eine kostenlose Beratung an!
Description
Technical Specification

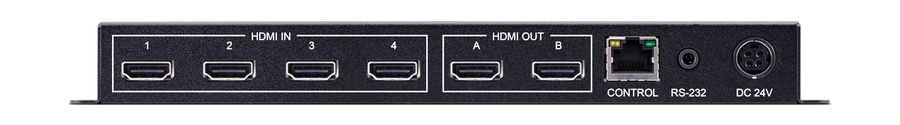

Inputs:
4 x HDMI female
Outputs:
2 x HDMI female

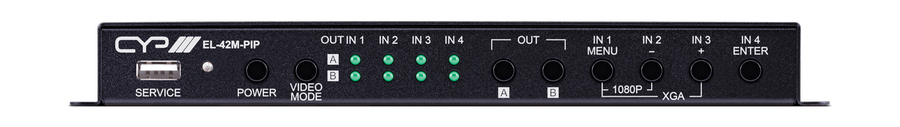

Control options:
Frontpanel, IP, RS232, IR
Resolutions supported:
640x480 bis 1920x1200 und 480i bis 1080p & UHD/4K@60Hz
Formats supported:
Video: HDMI2.0, HDCP1.4/2.2
Audio: Stereo Audio
Producer
CYP Europe
Product
EL42MPIP
Gehäuse
Metall
Weight (kg)
1,70
Color
Schwarz
Power supply type
Extern
Stromversorgung
24V / 2,7A DC
Operating
0°C - 40°C
Abmessungen BxHxT mm
231 x 25 x 162 mm
Artikel Nr.
8465
