Pattern,- Audio Generator & Analyser HDMI2.0 / HDCP2.2 XA-4
XA4
Support 54 resolutions settings, 47 test patterns, and 6 analysis tests which provide over a thousand different combinations of test scenarios. It supports HDMI data packets, EDID & HDCP analysis, EDID emulation, and allows the user to save 2 custom patterns, along with the ability to generate audio up to 8 channels.
Legen Sie dieses produkte in den Beraterkorb und fordern Sie anschlieÃend eine kostenlose Beratung an!
Description
Technical Specification

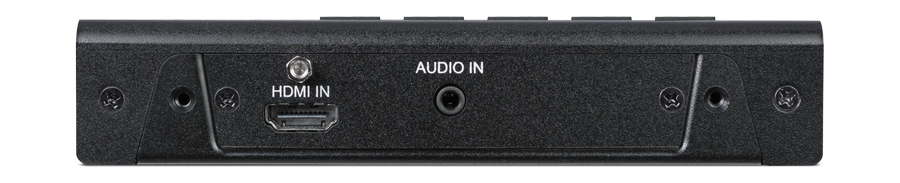

Inputs:
1 x HDMI female
1 x 3,5mm jack female (Stereo Audio)

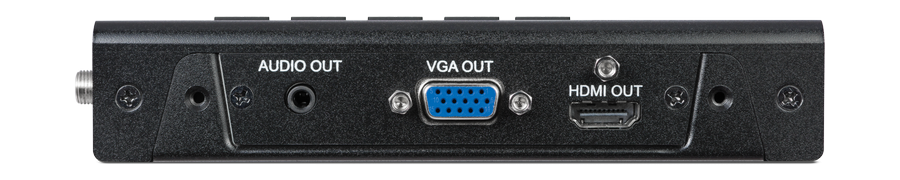

Outputs:
1 x HDMI female
1 x VGA female
1 x 3,5mm jack female (Stereo Audio)

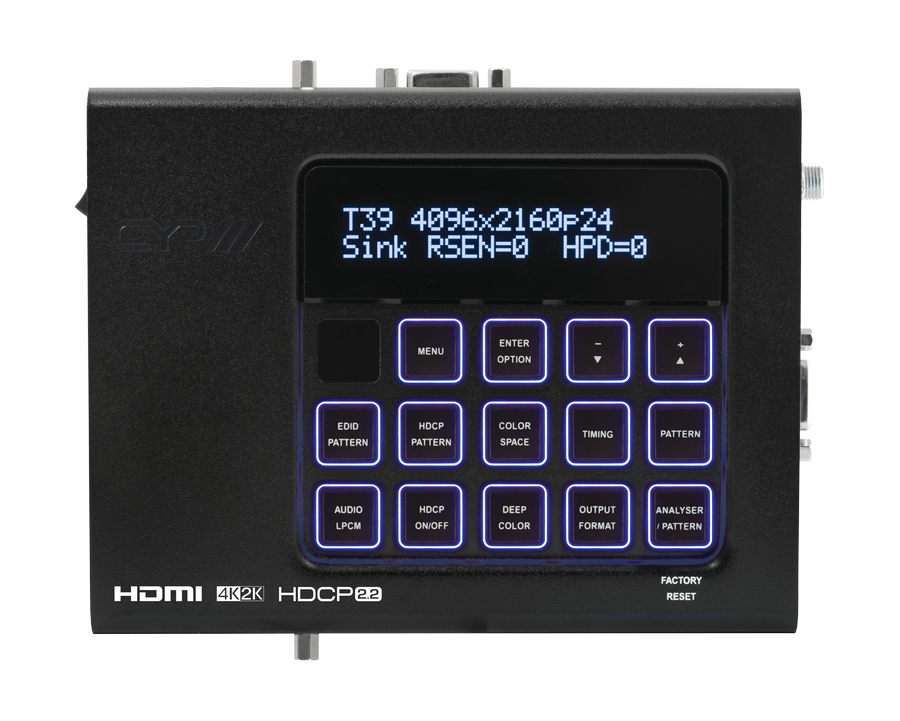

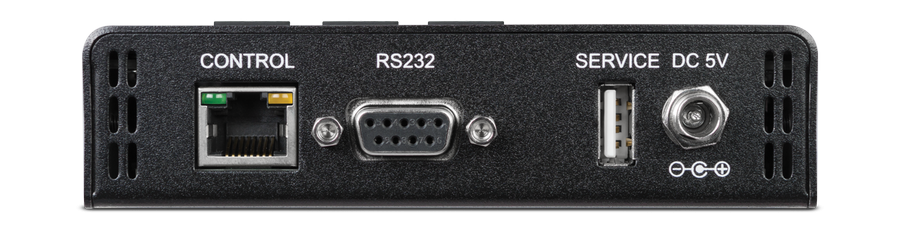

Control options:
Frontpanel, Ethernet, RS232, USB
Resolutions supported:
VGA: 640x480, 800x600, 1024x768, 1280x1024, 1366x768, 1400x1050,1440x900, 1600x900, 1600x1200, 1680x1050, 1920x1200 und 480p, 576p, 720p, 1080i, 1080p
HDMI: 640x480, 800x600, 1024x768, 1280x1024, 1366x768, 1400x1050, 1440x900, 1600x900, 1600x1200, 1680x1050, 1920x1200 und 480p, 576p, 720p, 1080i, 1080p, 3G 4K2K, 6G 4K2K
Formats supported:
Video: HDMI2.0, HDCP1.4/2.2 and DVI 1.0
Audio: digital und analog Audio (DAC / ADC)
