Rack Mount System 19" modular/ 2 HE/ max. 8 FTDS, FTHS 19RM-001
.png)
.png)
.png)
.png)
19RM-001
The 19RM-001 is a 19-inch rack mounting structure that offers the flexibility to mount up to eight(8) 4K Optical Extender, to be installed at the same time. Also, with two built-in AC/DC power supplies, can reliably supply DC power to 4K Optical Extenders, even if one of them fails.Up to OPHIT’s eight 4K Optical Extender (FTDS or FTHS) can be installed, and it is possible to mix and match the transmitter / receiver according to the user-s use.
Legen Sie dieses produkte in den Beraterkorb und fordern Sie anschlieÃend eine kostenlose Beratung an!
Description
Technical Specification
- 19 inches 2U size

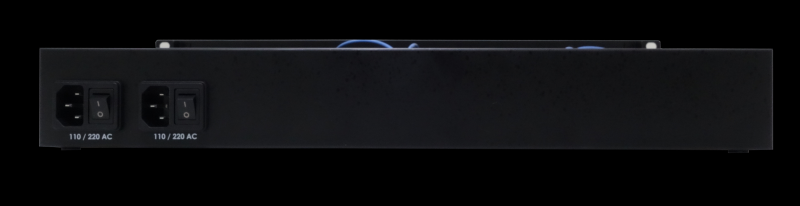

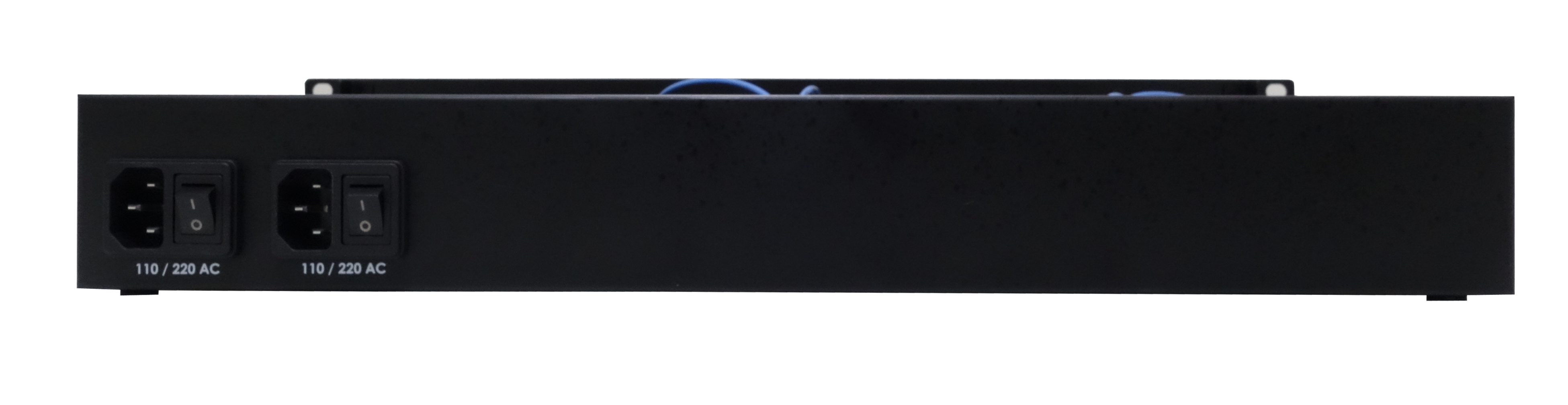

- Dual AC/DC power supply (power sharing)

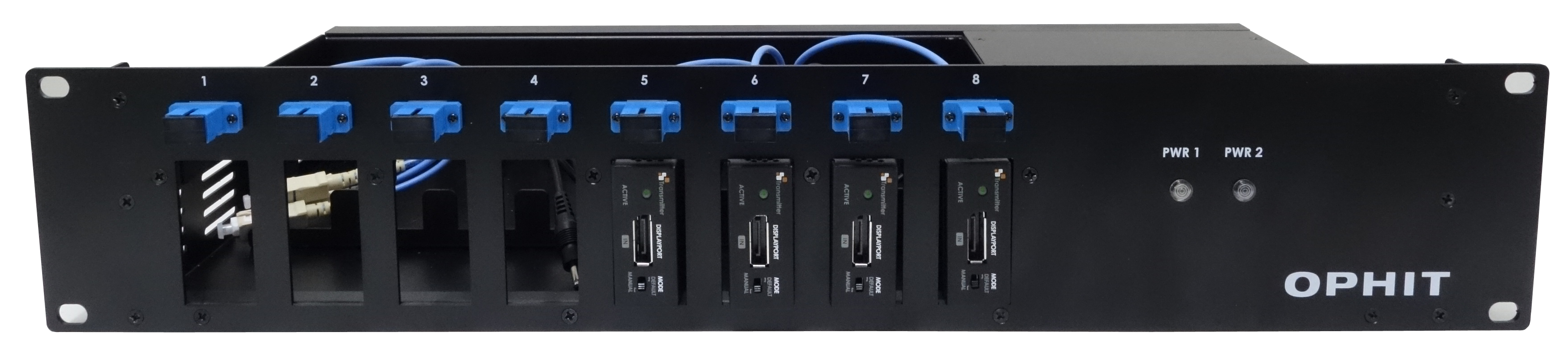

- 8 SC type optical connectors on the front. (OM3, Up to 200m)
- Power state indicate LED x 2 ( Each per AC/DC power supply)

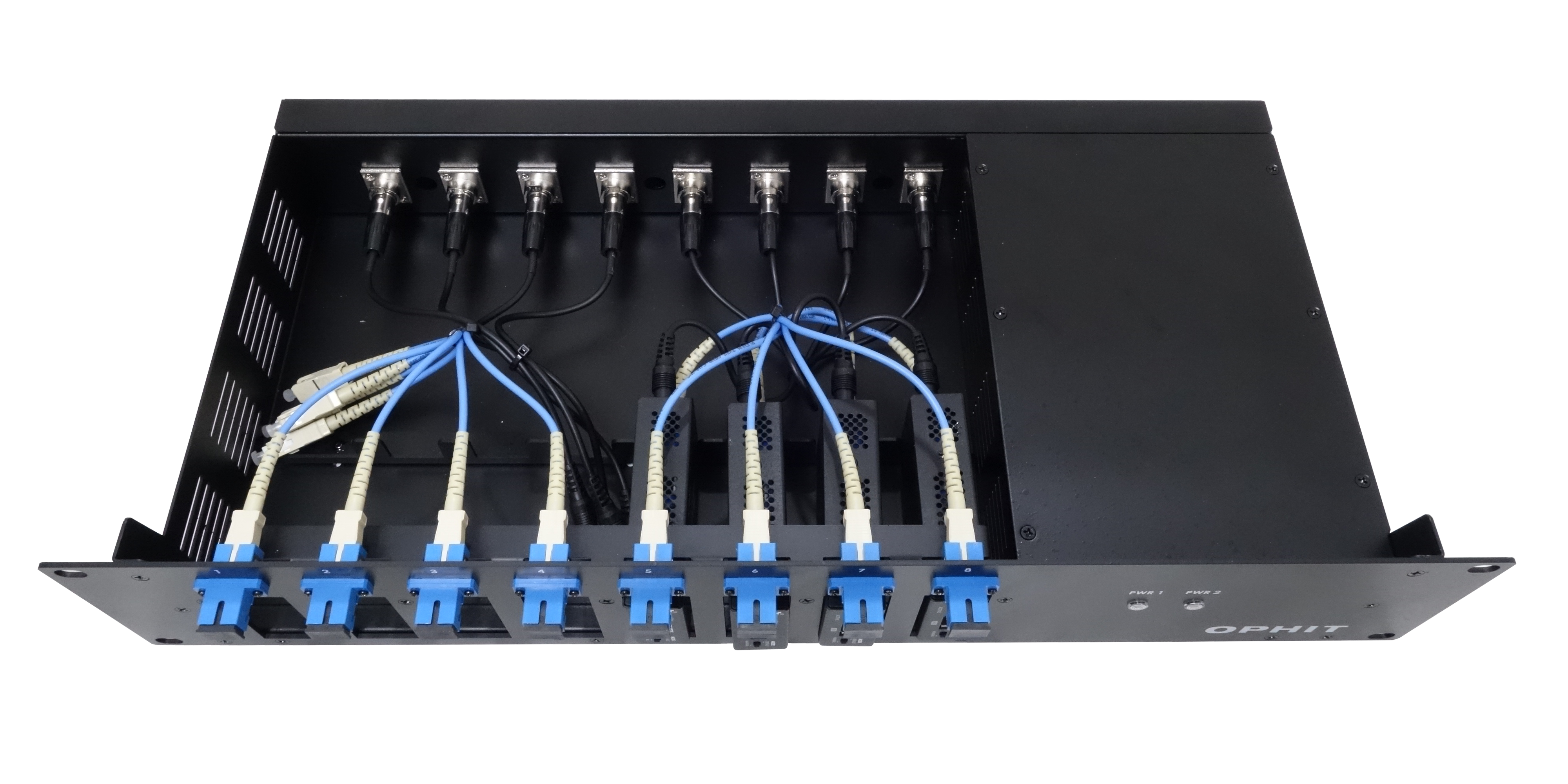

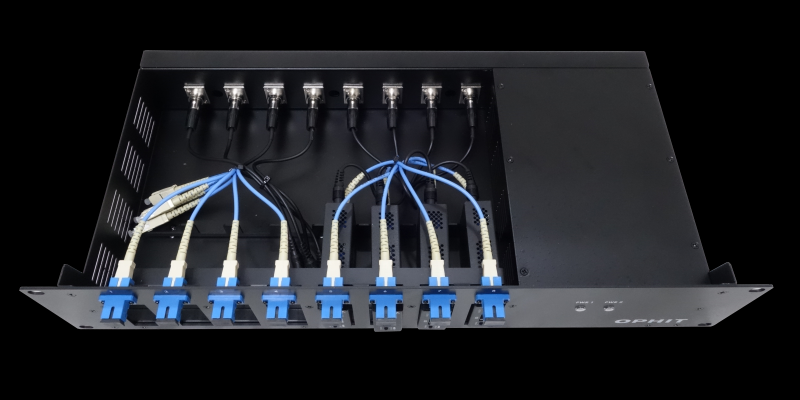

- Eight DC cables that can be removed / installed are installed inside.

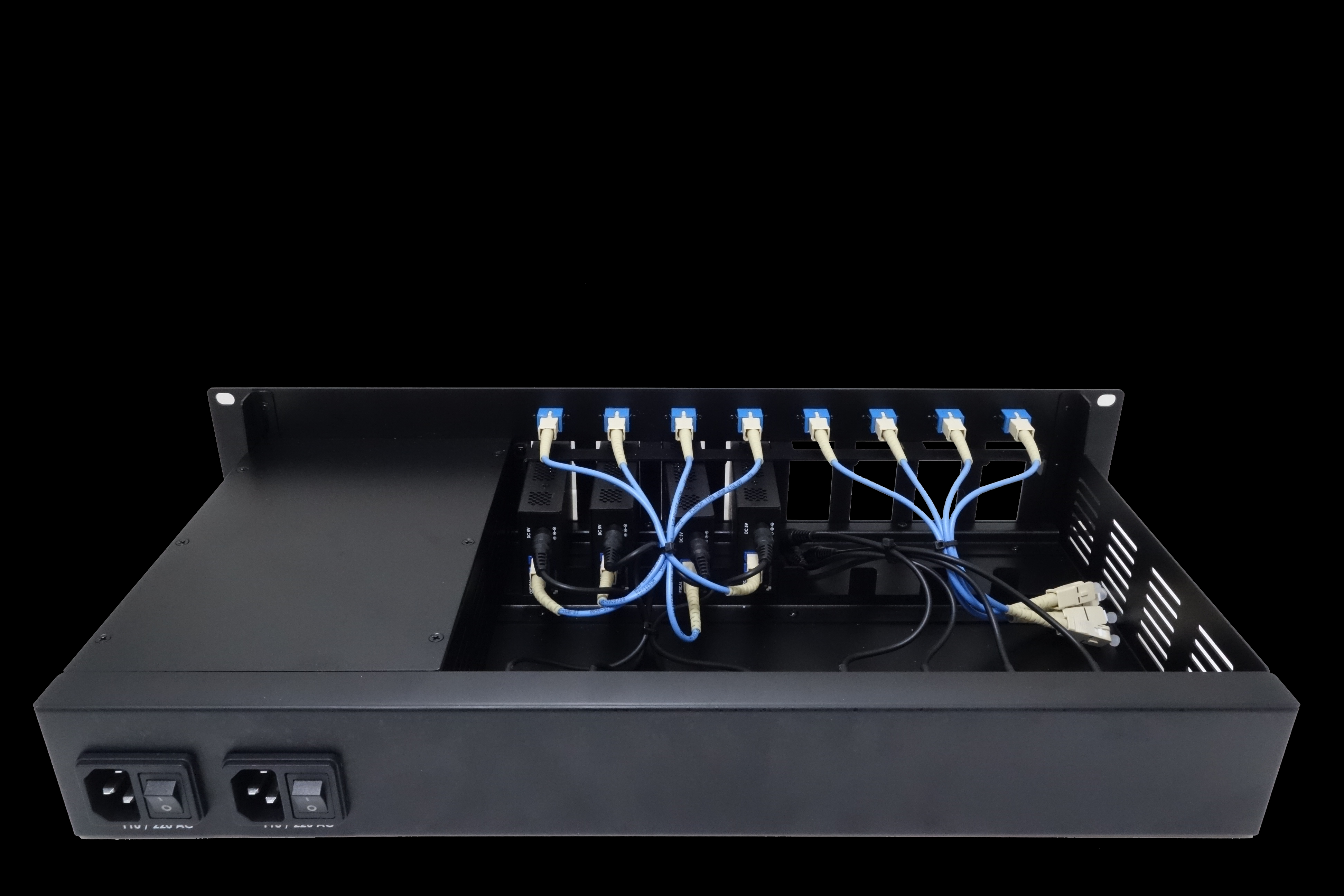

- Eight OM3 cables (22cm) that can be removed / installed are installed inside.
