RGB Spectrum Multiviewer 4 x HDMI2.0 auf 1 HDMI 2.0 QuadView IPX
QuadViewIPX
QuadView®UHDx for displaying up to four sources on a single screen. The feature-rich QuadView UHDx delivers superior image quality at up to 4K 60Hz resolution with customizable display windows. The unit offers internal switching of up to six input signals, four of which can be displayed simultaneously. Connect the QuadView UHDx to any monitor or projector from XGA
up to 4K/UHD resolution, and you’re ready for the next generation in multiviewer performance. You can mix and match input resolutions, scale any video input up to 4K UHD and route any input to any window.
Both HD and 4K UHD inputs can be displayed without downscaling. The QuadView UHDx analog and digital audio lets you select from any source.
Control options include the front panel, a built-in web interface and third-party control via Telnet and RS-232. The front panel is simplicity itself, enabling audio, video input and layout selection. Simply select a customizable layout, select inputs, and route inputs to the desired display windows.
Legen Sie dieses produkte in den Beraterkorb und fordern Sie anschlieÃend eine kostenlose Beratung an!
Description
Technical Specification

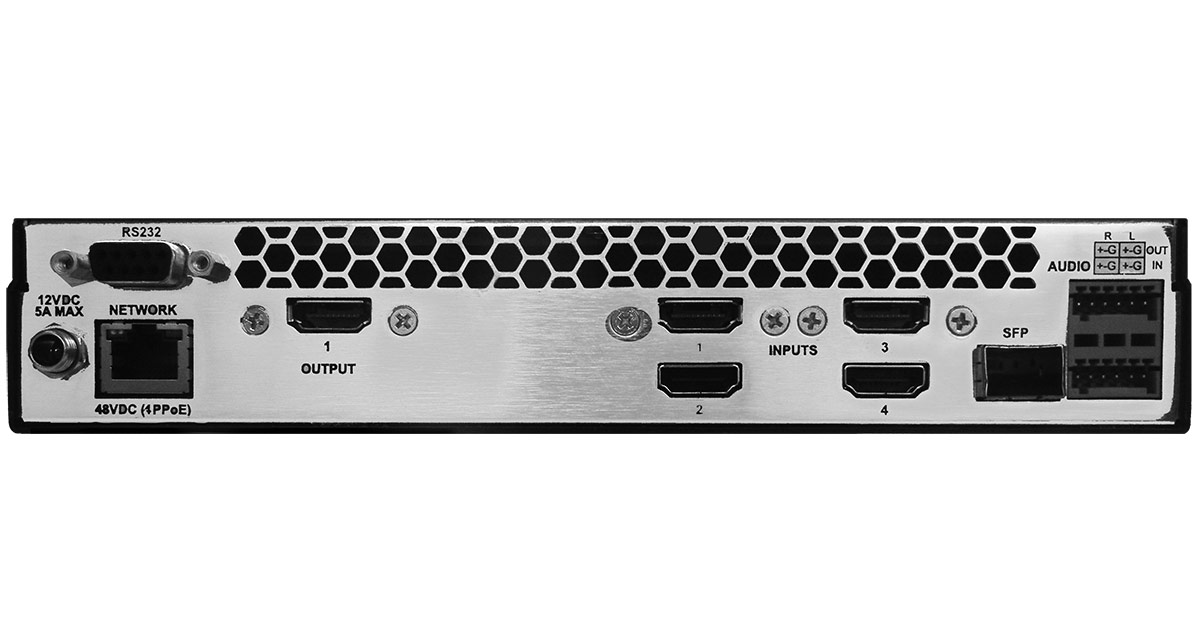

Eingänge:
4 x HDMI 2.0
1 x 6 pol. Phoenix Schraubklemme (Audio)
1 x RJ 45 für Steuerung
1 x Sub-D 9 Pin Buchse RS232
Ausgänge:
1 x HDMI 2.0
1 x 6 pol. Phoenix Schraubklemme (Audio)
1 x Steckplatz f. SFP
Steuerungsmöglichkeit:
Via Telnet, Web-GUI oder RS-232
Unterstützte Eingangsauflösungen:
bis 3840x2160@60Hz
Unterstützte Ausgangsauflösungen:
bis zu 3840x2160@60Hz
Unterstützte Formate: HDMI
