Splitter HDMI 2K/ 4K 1:16 QU-16E-4K

Hersteller

QU16E4K

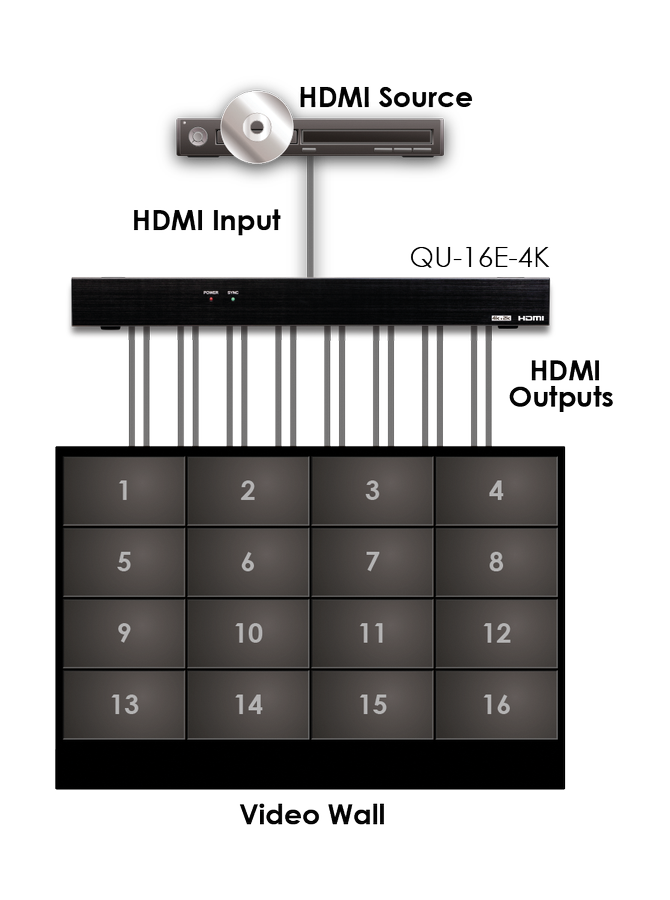

Accepts one HDMI input and splits this signal to sixteen identical outputs. This device is compatible to v1.3 HDMI specifications, supporting ‘Deep Colour’ together with High Definition Audio. Each buffered output can run 1080p/8-bit up to 15 metres and can also be cascaded up to 3 layers.

€ 695,00 Excl. VAT .

Legen Sie dieses produkte in den Beraterkorb und fordern Sie anschließend eine kostenlose Beratung an!

Description


Technical Specification

Input:
1 x HDMI female
Outputs:
16 x HDMI female
Resolutions supported:
640x480 up to 1600x1200 and 480i up to 1080p and 4K/ UHD@24/25/30Hz (RGB 4:4:4 & YUV 4:2:2), 4K UHD@ 60Hz (YUV 4:2:0), 4K/2K@24/25/30Hz (RGB 4:4:4 & YUV 4:2:2) and 4K/2K@ 60Hz (YUV 4:2:0)
Formats supported:
Video: HDMI1.3, HDCP 1.1
Audio: LPCM 7.1Ch, Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio transmission (32-192kHz Fs sample rate)

Producer
CYP Europe
Product
QU16E4K
Gehäuse
Metall
Weight (kg)
1,30
Color
Schwarz
Power supply type
Extern
Stromversorgung
5V / 6A DC
Operating
0°C - 40°C
Abmessungen BxHxT mm
435 x 50 x 125
Artikel Nr.
5937
