Splitter HDMI1.4 UHD/ 4K / HDCP1.4 1:2 QU-12S-N
QU12SN

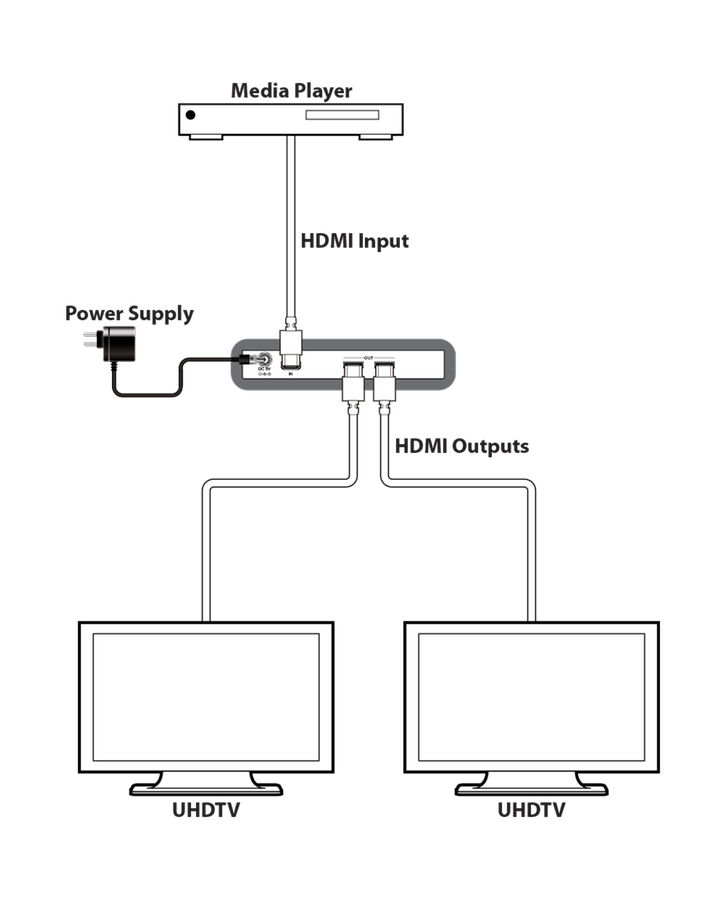

The QU-12S Distribution Amplifier (splitter) accepts one HDMI input and splits this signal to two identical outputs. This device is compatible to v1.4 HDMI specifications, supporting resolutions up 4K30 / 4K50/60 4:2:0, High definition digital audio formats such as LPCM 7.1, with audio sampling rates up to 192kHz, Bitstream, and HD Bitstream. The QU-12S has standard EDID management and the System Reset functionality.
Legen Sie dieses produkte in den Beraterkorb und fordern Sie anschlieÃend eine kostenlose Beratung an!
Description
Technical Specification
Input:
1 x HDMI female
Outputs:
2 x HDMI female
Control options:
CEC, Mini-USB (Service)
Resolutions supported:
640x480 to 1920x1200 and 480i to 1080p and UHD/ 4K@60Hz 4:2:0
Formats supported:
Video: HDMI1.4, HDCP1.4, DVI1.0
Audio: LPCM 2.0/5.1/7.1, Bitstream, and HD Bitstream
