Splitter/ Switcher HDMI2.0 UHD/ 4K / HDCP2.2 2:8 QU-28S-4K22
QU28S4K22

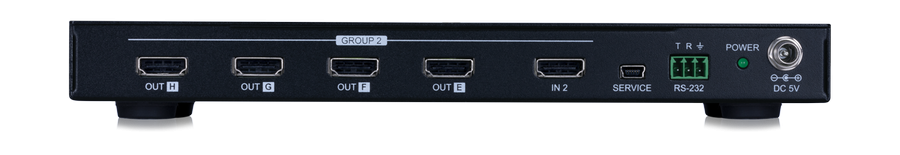

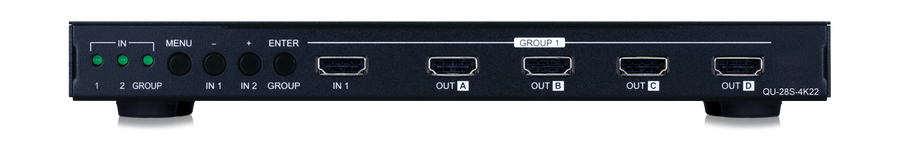

Switches 2 HDMI2.0/ DVI-D computer signals to 8 displays. This Distribution Amplifier also includes a special “Group Mode” which allows the unit to function as two independent 1×4 splitters. When Group Mode is enabled, each of the 2 HDMI inputs are routed to their own discrete set of 4 outputs.
Legen Sie dieses produkte in den Beraterkorb und fordern Sie anschlieÃend eine kostenlose Beratung an!
Description
Technical Specification
Inputs:
2 x HDMI female
Outputs:
8 x HDMI female
Control options:
Frontpanel, RS232, CEC
Resolutions supported:
VGA to WUXGA and 480i to 1080p and 4K/ UHD@24/25/30/50Hz, 4K/ UHD@60Hz (4:4:4 bis 4:2:0)
Formats supported:
Video: HDMI2.0, HDCP2.2, DVI1.0
Audio: PCM 2/5.1/7.1CH, Dolby Digital 2/5.1CH, DTS 2/5.1CH, Dolby Digital Plus, Dolby TrueHD, Dolby Atmos und DTS-HD Master Audio
