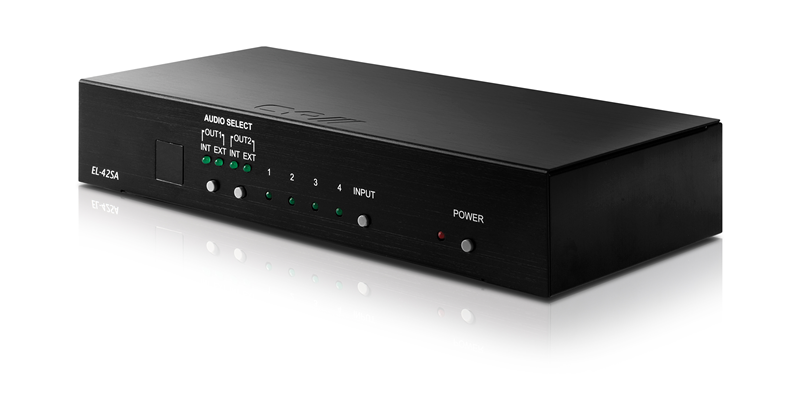

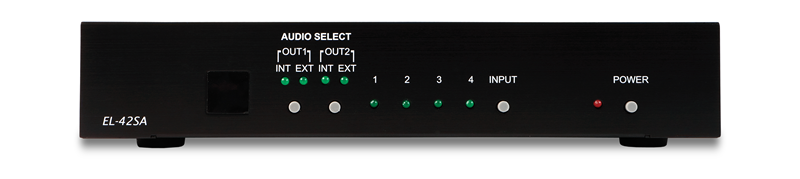

Switcher HDMI 4x2 EL-42SA
EL42SA

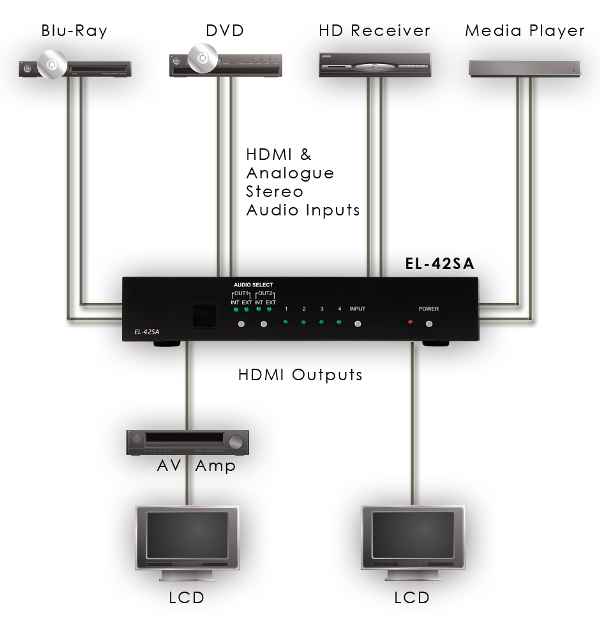

Switches 4 HDMI1.3/ DVI-D computer signals to 2 displays. This switcher features additional analog audio inputs for each of the 4 HDMI inputs. It has dual HDMI output, which can be separatly configured für auido routing either internal (HDMI audio) or external (analog stereo audio).
Preis auf Anfrage
Legen Sie dieses produkte in den Beraterkorb und fordern Sie anschlieÃend eine kostenlose Beratung an!
Description
Technical Specification
Inputs:
4 x HDMI female
8 x RCA ( 4 analog stereo)
1 x 9-pin Sub D (RS232)
Outputs:
2 x HDMI female
Resolutions supported:
640x480 up to 1920x1200 and 480i up to 1080p & 1080p24fps (Deep color 10&12 bit)
Formats supported:
Video: HDMI1.3, HDCP 1.1; SDI1.0
Audio: Dolby Digital Plus, Dolby True HD, DTS-HD Master Audio plus LPCM
Producer
CYP Europe
Product
EL42SA
Gehäuse
Metall
Weight (kg)
0,64
Color
Schwarz
Power supply type
Extern
Stromversorgung
5V / 2,6A DC
Abmessungen BxHxT mm
240 x 50 x 104
Artikel Nr.
4625
