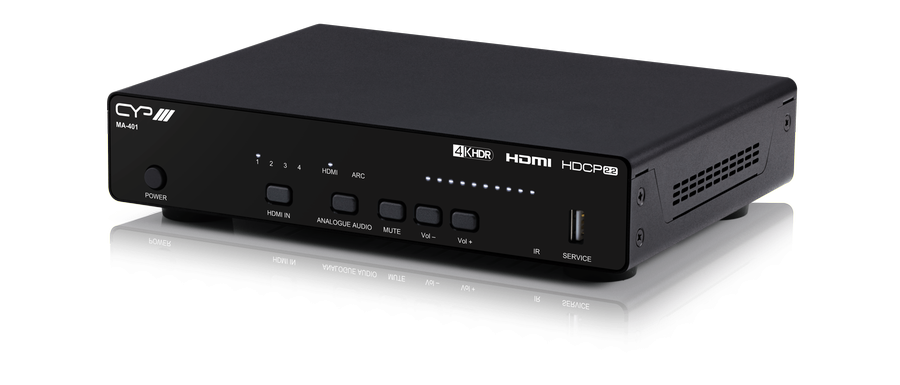

Switcher HDMI2.0 UHD/ 4K / HDCP2.2 4x1, Amplifier 2x20W MA-401
MA401
??The MA-401 is a 4×1 HDMI switcher with a built-in 20w Stereo Amplifier providing high performance audio and video support, including HDR and ARC, making it ideally suited for residential or corporate installations. Up to four high-bandwidth (18Gbps) HDMI sources may be routed to the local HDMI output with support for automatic input switching. Pass-through of multiple digital audio formats such as LPCM 7.1, Bitstream and advanced HD Bitstream with audio sampling rates up to 192kHz are supported at the HDMI output.This unit also contains a specialized IR learning and smart-routing functionality. IR codes from each of the connected sources- remotes can be learned and then recalled using this unit’s dedicated remote control, or the iOS / Android mobile device app. Intelligent IR routing ensures that only the IR signals appropriate to the source being viewed are used by the dedicated remote control while the mobile device app provides the ability to send IR commands to control any connected source and the TV itself. IR command sets may also be uploaded or downloaded to/from the unit via XML files.

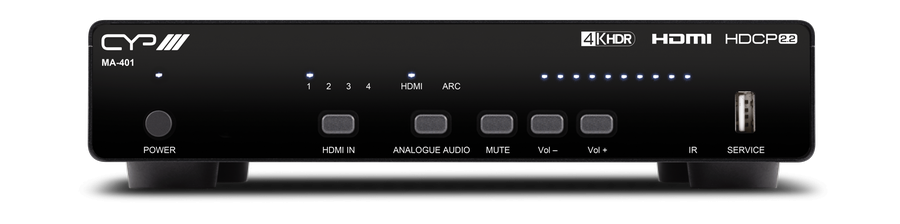

This unit can be controlled in a wide variety of different ways including front panel buttons, RS-232, IR remote, Telnet, WebGUI.
Legen Sie dieses produkte in den Beraterkorb und fordern Sie anschlieÃend eine kostenlose Beratung an!
Description
Technical Specification

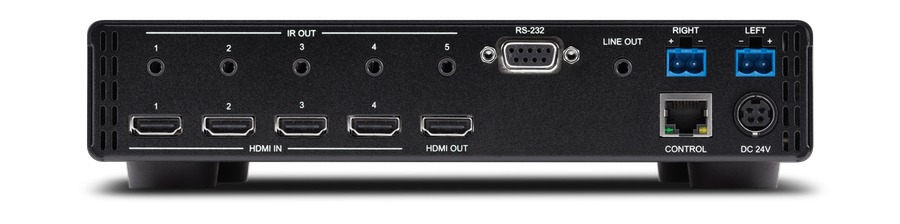

Inputs:
4 x HDMI female
Outputs:
1 x HDMI female
1 x 3,5mm mini jack stereo female unbalaced
5 x 3,5mm mini jack IR female
2 x Phoenix female for L/R
Control options:
Frontpanel, RS232, IR, IP, CYP Control APP
Resolutions supported:
VGA to WUXGA and 480i to 1080p and 4K/ UHD@24/25/30/50Hz, 4K/ UHD@60Hz (YUV 4:4:4)
Formats supported:
Video: HDMI2.0, HDCP2.2, DVI1.0
Audio: LPCM 2/5.1/7.1CH, Dolby Digital 2/5.1CH, Dolby Digital Plus, Dolby TrueHD, Dolby Atmos and DTS-HD Master Audio
