Switcher HDMI2.0 UHD/ 4K / HDCP2.2 4x1 EL-41HP-4K22
EL41HP4K22
This 4-Way HDMI Switcher is designed to enable the user to switch between any of the four connected HDMI sources to send video and audio to a single HDMI display. This switcher fully supports 4K resolutions and is HDMI2.0 and HDCP 2.2 compliant, ensuring maximum compatibility with the latest 4K UHD sources and displays. The EL-41HP-4K22 supports all the latest features of the HDMI 2.0 specification such as 4K UHD resolutions (4K2K@60Hz - YUV4:4:4),HDR (High Dynamic Range), -Deep Color-, and High Definition audio. In addition, this switcher also features an Auto-Switching function which detects the last active input and switches to this input automatically for display. The management of source/sink configurations can be easily controlled via the on-board WebGUI LAN control, IR remote control and RS-232.
Legen Sie dieses produkte in den Beraterkorb und fordern Sie anschlieÃend eine kostenlose Beratung an!
Description
Technical Specification

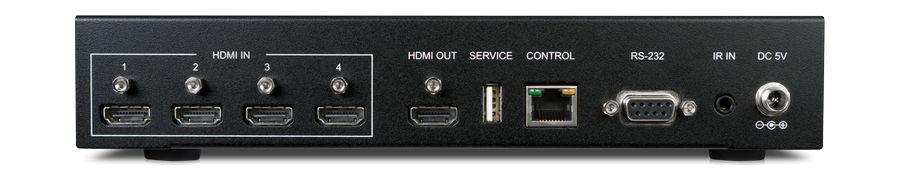

Inputs:
4 x HDMI female
Output:
1 x HDMI female
Control options:

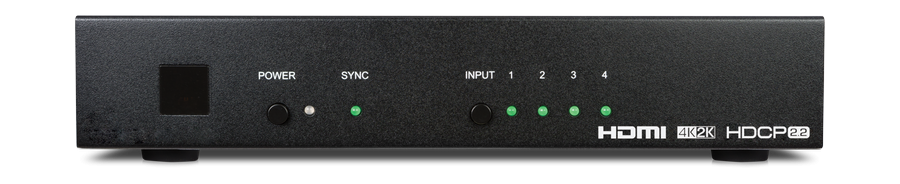

Frontpanel, RS232, IR, IP
Resolutions supported:
VGA to WUXGA and 480i to 1080p and 4K/ UHD@24/25/30/50Hz, 4K/ UHD@60Hz (YUV 4:4:4)
Formats supported:
Video: HDMI2.0, HDCP2.2, DVI1.0
Audio: PCM 2/5.1/7.1CH, Dolby Digital 2/5.1CH, DTS 2/5.1CH, Dolby Digital Plus, Dolby TrueHD, Dolby Atmos und DTS-HD Master Audio
