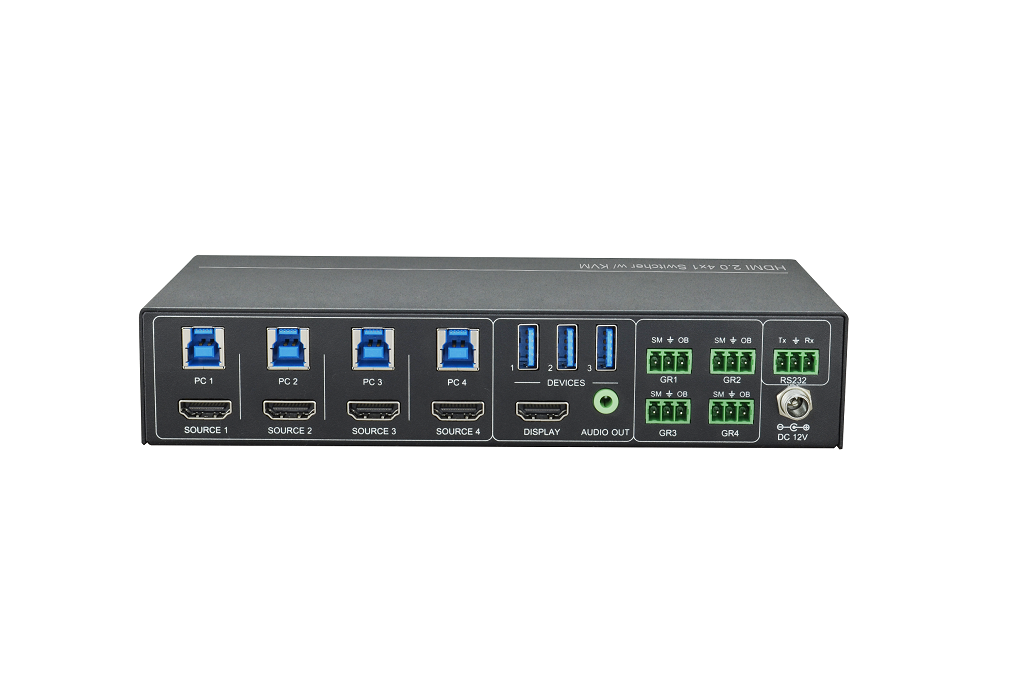

Switcher HDMI2.0 UHD/ 4K / HDCP2.2, USB3.0, Audio 4x1 SCT-SWKVM41-H2U3
SCTSWKVM41H2U3
This 4-Way HDMI2.0 with 18 Gpbs and USB3.0 Switcher is designed to enable the user to switch between any of the four connected HDMI sources to send video and analogue audio to a single HDMI display. This switcher fully supports 4K resolutions and is HDMI2.0 with HDR and HDCP 2.2 compliant. This switcher also features an Auto-Switching function, GPIO, front panel and RS-232.
Legen Sie dieses produkte in den Beraterkorb und fordern Sie anschlieÃend eine kostenlose Beratung an!
Description
Technical Specification
Inputs:
4 x HDMI female
4 x USB3.0 B female
Output:
1 x HDMI female
1 x 3,5mm mini jack female (audio)
3 x USB3.0 A female
Control options:
Frontpanel, RS232, GPIO, autoswitching
Resolutions supported:
VGA to WUXGA and 480i to 1080p and 4K/ UHD@24/25/30/50Hz, 4K/ UHD@60Hz (4:4:4)
Formats supported:
Video: HDMI2.0, HDR, HDCP2.2/ 1.4, DVI1.0
Audio: analogue Audio
USB: 3.0
