Switcher/ VideoScaler/ AMP USB-C, HDBaseT, HDMI, VGA to HDBaseT, HDMI EL-8500VA
EL8500VA

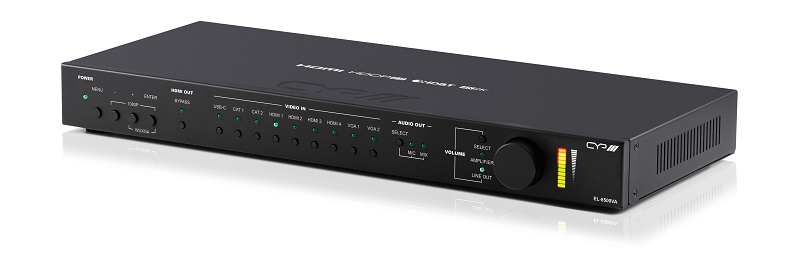

The EL-8500VA is a multi-format scaling presentation switcher providing HDMI, USB Type C, HDBaseT, and VGA inputs which can be freely selected for output at a scaled resolution of the user’s choosing over the mirrored HDMI and HDBaseT outputs. The HDMI and USB-C ports support resolutions up to 4K@60 (4:4:4, 8-bit) while the HDBaseT output supports automatic down-conversion of 4K60(4:4:4) sources to 4K60(4:2:0). The VGA inputs support resolutions up to WUXGA. The HDBaseT output provides a great solution to extend your audio and video up to 70 meters (at 4K) over a single run of Cat.5e/6/7 cable as well as providing 48V PoH power to compatible HDBaseT Receivers.
This unit also includes multiple analog stereo audio inputs and a microphone input along with an amplified analog stereo output to provide a range of audio routing and mixing flexibility. The built-in audio mixer function allows the user to mix audio from any analog input with the microphone input for presentation or lecture usage. The ability to switch back and forth between mixed and non-mixed audio greatly simplifies the presentation experience.

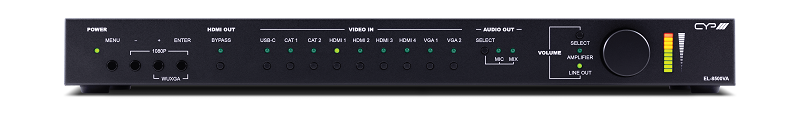

A trigger input interface is also provided to allow the easy addition of a remote control keypad, or other trigger-supporting products, which can be installed within a podium or within a table in a conference room or classroom. This interface can allow the user to activate functions with the simple press of a button. Standard control is available via front panel buttons with an On-Screen Display (OSD), WebGUI, IR remote, Telnet, and RS-232 making it exceptionally versatile.
Legen Sie dieses produkte in den Beraterkorb und fordern Sie anschlieÃend eine kostenlose Beratung an!
Description
Technical Specification

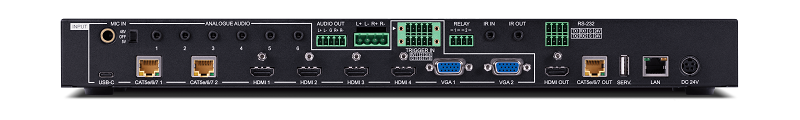

Inputs:
4 x HDMI (4x HDMI Uncompressed AV and Data)
2 x RJ45 (2x HDBaseT HDMI & Propriety Data)
2 x 15pin Dsub (2x VGA RGBHV)
1 x 6.35mm Stereo Jack (1x Microphone)
6 x 3.5mm Stereo mini-jack (6x Stereo(L/R))
1 x Phoenix (10 pin) (1x Trigger In (8))
1 x 9pin Dsub (1x RS-232 Control RS-232 Data)
1 x 3.5mm Stereo mini-jack (1x Infra Red Receiver)
1 x RJ45 (1x Control IP)
1 x USB-C
1 x USB-A (Service)
Outputs:
1 x HDMI
1x RJ45 (HDBaseT)
2x 3.5mm Stereo mini-jack (2x Stereo(L/R))
1x 3.5mm Stereo mini-jack (1x Infra Red Emitter)
Control options:
Frontpanel (OSD), Ethernet, RS232, IR
Supported resolution:
4K UHD (18Gbps, 4K@50/60Hz 4:4:4, 8-bit) video input and output
The HDBaseT-Ausgang converts source signal with 4K50/60(4:4:4) to
4K50/60(4:2:0).
Formats supported:
Video: HDMI 2.0, 3D, HDCP 2.2
Audio: digitales und analoges Audio (DAC/ADC)
