Switcher/ VideoScaler/ AMP USB-C, HDMI, DP, VGA auf HDBaseT, HDMI EL-8300VA
EL8300VA
The EL-8300VA is an advanced multi-format presentation switch with integrated scaling across the HDMI, USB-C, Displayport and VGA inputs, plus HDMI and HDBaseT outputs. The EL-8300VA features HDBaseT extension for video up to 4K/60 (4:2:0), plus embedded audio, control and Ethernet over distances of up to 100m. The HDMI, USB-C and DisplayPort inputs support video up to 4K/60 (4:4:4, 8-bit) while the VGA input supports resolutions up to WUXGA. The EL-8300VA is HDCP 2.2 compliant and features 4K/60 4:4:4 upscaling and downscaling across all the inputs.
The EL-8300VA includes multiple analogue stereo audio inputs and microphone input, along with amplified and balanced line-level analogue stereo outputs, providing a range of audio routing and mixing functionality. The built-in audio mixer function allows the user to mix audio from any LPCM 2.0 source with the microphone input for presentation or lecture usage. The ability to switch back and forth between mixed and non-mixed audio provides additional flexibility to the presentation experience.

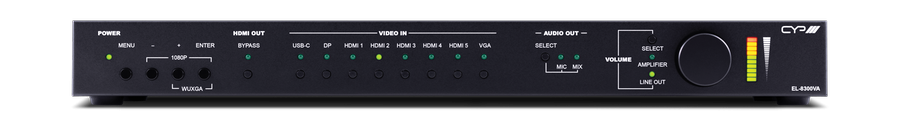

Trigger inputs allow the easy addition of a remote control keypad (CR-TG1), or third party voltage trigger products, which can be installed within a podium or table in a conference room or classroom. This interface enables the user to activate functions with the simple press of a button. Comprehensive control options are provided via the front panel buttons (various button locking features available), On-Screen Display (OSD), WebGUI, IP Telnet, Voltage Trigger, and RS-232.
Legen Sie dieses produkte in den Beraterkorb und fordern Sie anschlieÃend eine kostenlose Beratung an!
Description
Technical Specification

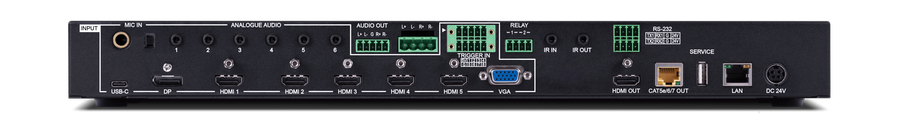

Inputs:
1 x USB-C female
5 x HDMI female
1 x Display Port femlae
1 x 15pin Dsub VGA femlae
1 x 6.35mm Stereo Jack (1x Microphone)
6 x 3.5mm Stereo mini-jack (6x Stereo(L/R))
Outputs:
1 x HDMI feamle
1 x RJ45 female (HDBaseT 4K>70m/ 2K>100m)
1 x Phoenix female 5 Pin.
1 x Phoenix female 4 Pin. (2x20 Watt)
Control options:
Frontpanel (OSD), Ethernet, RS232, IR, GPIO
Supported resolution:
4K UHD (18Gbps, 4K@50/60Hz 4:4:4, 8-bit) video input and output
The HDBaseT-Ausgang converts source signal with 4K50/60(4:4:4) to
4K50/60(4:2:0).
Formats supported:
Video: HDMI 2.0, 3D, HDCP 2.2
Audio: digitales und analoges Audio (DAC/ADC)
Audio-Amp:
2 x 20 Watt @4 Ohm
