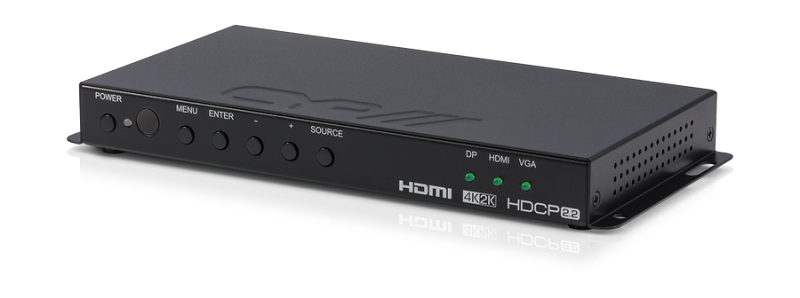

Switcher/ VideoScaler DP, HDMI, VGA, Audio to HDMI, Audio EL-6010-4K22
EL60104K22

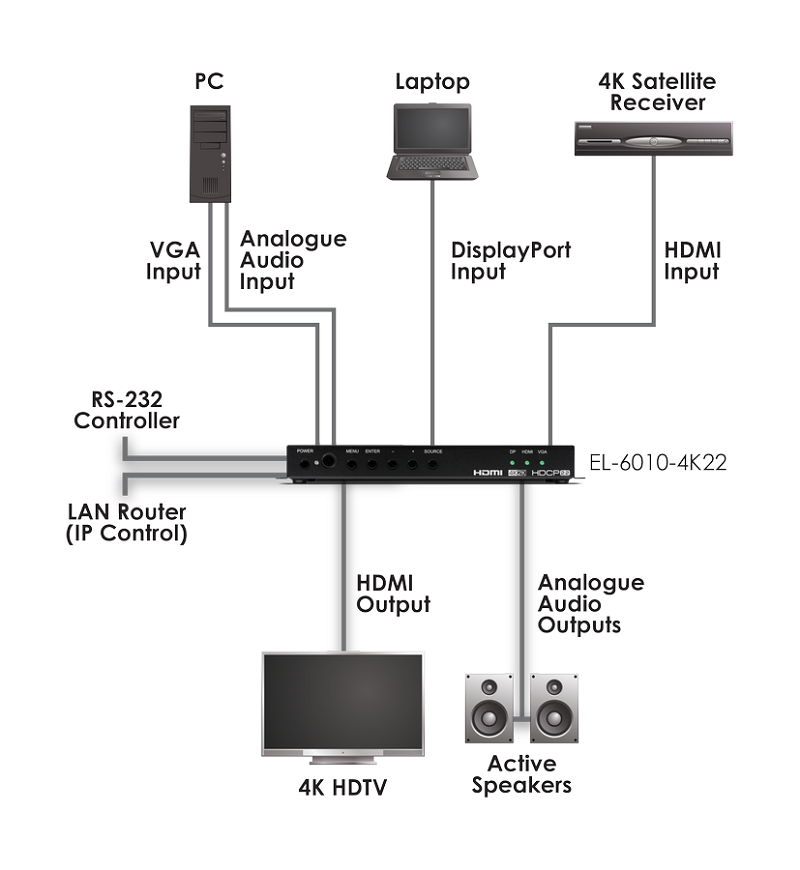

Is a multi-format scaler with HDMI, VGA, and DisplayPort inputs scaling to the HDMI output. Ideal for boardroom or classroom applications, this device is designed to enable an installer to scale the input from the connected source device to a HDMI resolution suitable for the connected HDMI display. The maximum output resolution supported is 4K@60Hz (YUV 4:4:4).

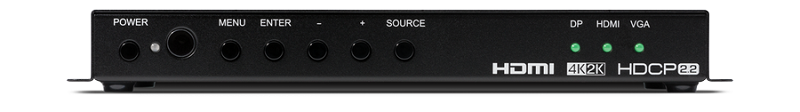

This unit also features a selection of adjustment options you are likely to need when accommodating different sources including a wide array of aspect ratio settings as well as contrast, brightness, saturation, hue, and sharpness settings directly on the device. In addition, the EL-6010-4K22 has an analogue speaker output for ease of integration when employed in conference centres, classrooms and public venues. The auto source detection feature is designed to switch to the most recently connected source automatically and to switch to another live input if the current one becomes disconnected. This unit is controllable via front panel controls (with OSD), WebGUI, IR remote, telnet and RS-232. These comprehensive control interfaces make operation easy and intuitive.
Legen Sie dieses produkte in den Beraterkorb und fordern Sie anschlieÃend eine kostenlose Beratung an!
Description
Technical Specification

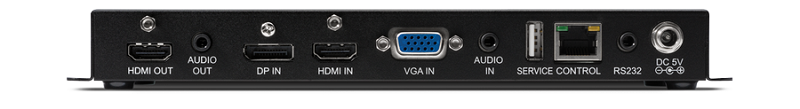

Inputs:
1 x DisplayPort female
1 x HDMI female
1 x VGA female
1 x 3,5mm jack female (analog Audio)
1 x 3,5mm mini jack female (RS232)
Outputs:
1 x HDMI female
1 x 3,5mm mini jack female (RS232)
Control options:
Input scan function, Frontpanel, Ethernet, RS232, IR
Inputresolutions supported:
VGA, SVGA, XGA, SXGA, UXGA, WUXGA und 480p bis 1080p and UHD@24/ 25/30 Hz, UHD@50/60 Hz (YUV4:2:0) and 4096x2160@50/ 60 Hz
(This resolutions dont support all inputs)
Outputresolutions supported:
SVGA, XGA, SXGA, UXGA, WUXGA and 480p to 1080p and UHD@24/ 25/30 Hz, UHD@50/60 Hz (YUV4:2:0) und 4096x2160@50/ 60 Hz
Formats supported:
Video: HDMI 2.0/ 1.4, HDCP 2.2/ 1.1 and DVI 1.0
Audio: digital and analog Audio
