Switcher/ VideoScaler DP, HDMI, VGA to HDBaseT LITE, HDMI with Audio EL-5400-HBT
EL5400HBT
This HDMI/DisplayPort/VGA to HDMI Scaler with HDBaseT LITE Output is designed to switch and scale up to 5 AV inputs to simultaneous HDMI and HDBaseT LITE outputs at resolutions up to 1080p/WUXGA. The HDBaseT LITE output enables the user to send the signals up to 60m over a single CAT5e/6/7 cable and supports PoC (Power over Cable) to provide power to the connected HDBaseT LITE receiver (PU-515PL-RX or PU-515PL-WPRX). Additionally, this device offers 3 analogue Line level audio inputs, a switchable Microphone input and a Line level output. The microphone input features a 48V Phantom power mode for use with professional microphones. The audio DSP engine provides auto-mixing and auto-gain control to mix or reduce the background audio in order to enhance the main audio source. The system can be controlled and easily configured via WebGUI, IR remote control or RS-232. This device is an ideal solution for presentation facilities within a classroom and/or conference room.
Legen Sie dieses produkte in den Beraterkorb und fordern Sie anschlieÃend eine kostenlose Beratung an!
Description
Technical Specification

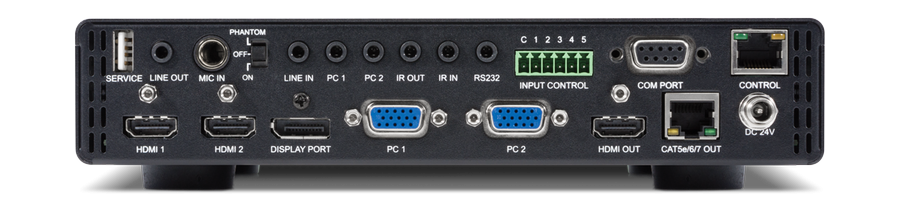

Inputs:
2 x HDMI
1 x DisplayPort
1 x 15 pin Sub D HD (VGA)
1 x digital Audio
1 x analog Audio
1 x RS232 via Jack to controll a device at the Rx side
Outputs:
1 x HDMI
1 x digital Audio
1 x analog Audio
Control options:
Input scan function, Frontpanel, Contact closure, Ethernet, RS232, IR
Inputresolutions supported:
VGA, SVGA, XGA, SXGA, UXGA, WUXGA und 480p bis 1080p
(This resolutions dont support all inputs)
Outputresolutions supported:
VGA, SVGA, XGA, SXGA, UXGA, WUXGA und 480p bis 1080p
Formats supported:
Video: HDMI 1.4, HDCP 1.1 und DVI 1.0
Audio: digitales und analoges Audio
