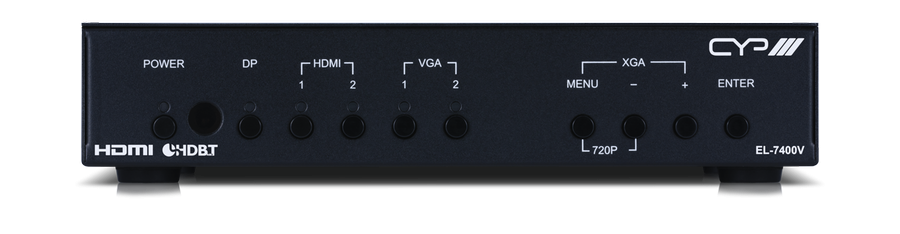

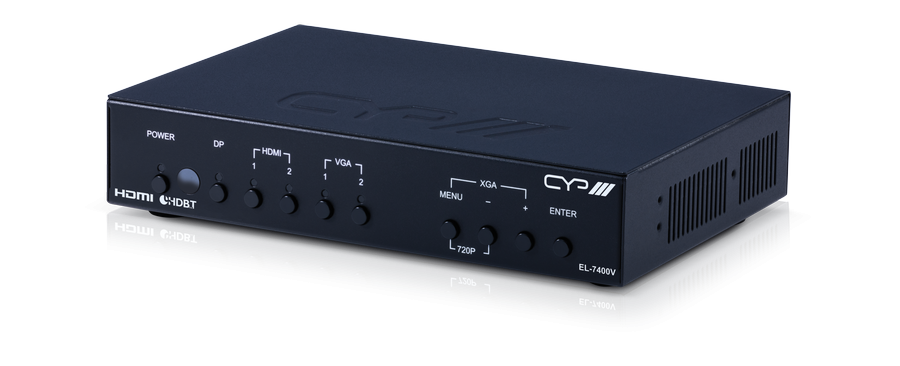

Switcher/ VideoScaler DP, HDMI, VGA to HDBaseT LITE, HDMI with Audio EL-7400V
EL7400V
This HDMI/DisplayPort/VGA to HDMI Scaler with HDBaseT LITE Output is designed to switch and scale up to 5 AV inputs to simultaneous HDMI and HDBaseT LITE outputs at resolutions up to 1080p/WUXGA. The HDBaseT LITE output enables the user to send the signals up to 60m over a single CAT5e/6/7 cable and supports PoC (Power over Cable) to provide power to the connected HDBaseT LITE receiver (PU-515PL-RX or PU-515PL-WPRX). Additionally, this device offers 3 analogue Line level audio inputs, a switchable Microphone input and a Line level output. The microphone input features a 48V Phantom power mode for use with professional microphones. The audio DSP engine provides auto-mixing and auto-gain control to mix or reduce the background audio in order to enhance the main audio source. The system can be controlled and easily configured via WebGUI, IR remote control or RS-232. This device is an ideal solution for presentation facilities within a classroom and/or conference room.
Legen Sie dieses produkte in den Beraterkorb und fordern Sie anschlieÃend eine kostenlose Beratung an!
Description
Technical Specification

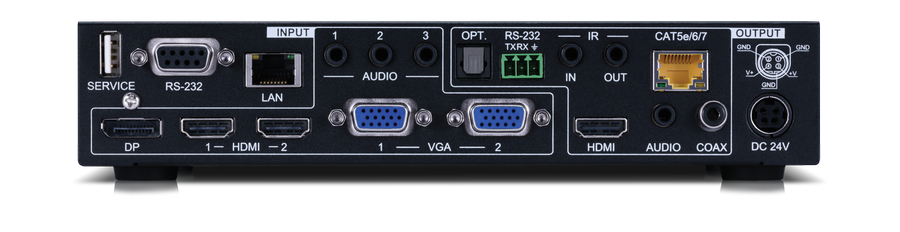

Inputs:
1 x DisplayPort female
2 x HDMI female
2 x 15 pin Sub D HD (VGA) female
3 x 3,5mm mini jack female (Stereo Audio)
1 x 3,5mm mini jack female (IR)
1 x 3 pin Phoenix female (to controll a device at the Rx side)
Outputs:
1 x RJ45 female (HDBaseT LITE 60m)
1 x HDMI female
1 x 3,5mm mini jack female (Stereo Audio)
1 x Chinch female (COAX dig. Audio)
1 x SPDIF female (dig. Audio)
1 x 3,5mm mini Jack femlae (IR)
Control options:
Frontpanel, Ethernet, RS232, IR
Inputresolutions supported:
VGA, SVGA, XGA, SXGA, UXGA, WUXGA und 480p bis 1080p
(This resolutions dont support all inputs)
Outputresolutions supported:
VGA, SVGA, XGA, SXGA, UXGA, WUXGA und 480p bis 1080p
Formats supported:
Video: HDMI 1.4, HDCP 1.1 und DVI 1.0
Audio: digitales und analoges Audio
