Switcher/ VideoScaler HDBaseT, HDMI, VGA, Video to HDBaseT, HDMI EL-5500-HBT
EL5500HBT
Allows the connection of 4 x HDMI, 2 x HDBaseT (to 100m), 1 x VGA and Composite with Audio and gives this as a HDMI and HDBaseT signal with 640x480 to 1920x1200 or 480i to 1080p with analog or digital audio out.
The additional features: Aspect Ratio, Underscan/ Overscan and picture Adjustment settings
Legen Sie dieses produkte in den Beraterkorb und fordern Sie anschlieÃend eine kostenlose Beratung an!
Description
Technical Specification

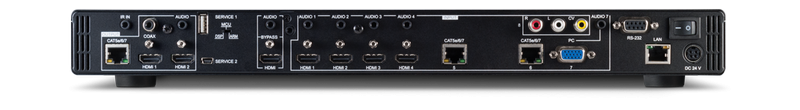

Inputs:
4 x HDMI
2 x HDBaseT (PoE)
1 x 15 pin Sub D HD (VGA)
1 x FBAS
6 x analog Audio
Outputs:
3 x HDMI (1 x Bypass)
1 x HDBaseT (PoE)
1 x digital Audio
1 x analog Audio
Control options:
Frontpanel, Ethernet, RS232, IR
Resolutions supported:
640x480 to 1920x1200 or 480i to 1080p
Formats supported:
Video: HDMI 1.3, 3D, HDCP 1.1 und DVI 1.0
Audio: digitales und analoges Audio (DAC / ADC)
