Switcher/ VideoScaler HDMI, VGA with Audio to HDMI with Audio SY-HDVGA-4K22
SYHDVGA4K22

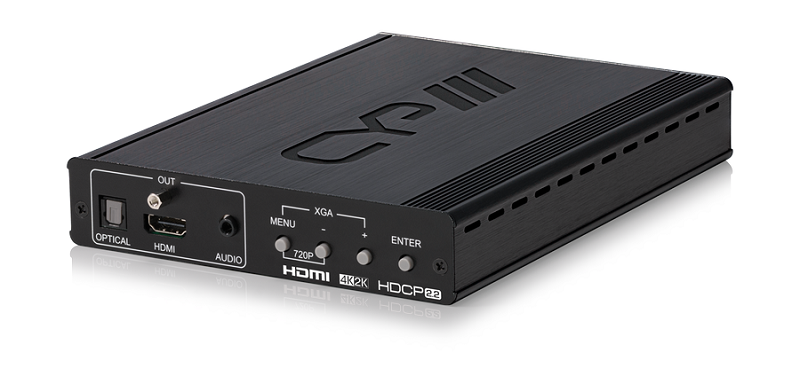

This is a compact yet versatile 4K UHD HDMI and PC/HD to HDMI Scaler. It accepts a wide range of resolutions from 480i up to 1080p/WUXGA for PC/HD and up to 4K@60Hz (4:4:4) for HDMI with the ability to scale the output to a selectable resolution up to 4K@60Hz (4:4:4) with simultaneous de-embedded, digital optical and analog audio outputs. This unit also supports 3D signals. The SY-HDVGA-4K22 also has auto source detection and switching feature allowing the unit to switch automatically to the most recently connected source, or to switch to an alternative source if the current one becomes disconnected.
This unit has a comprehensive OSD menu that provides the user with easy access to all settings. An integrated hot-key design makes for rapid access to common functions such as input selection and audio volume. This is an ideal device to integrate previously incompatible sources and displays or to provide a flexible auto-detecting input point for multiple installation scenarios.
Legen Sie dieses produkte in den Beraterkorb und fordern Sie anschlieÃend eine kostenlose Beratung an!
Description
Technical Specification

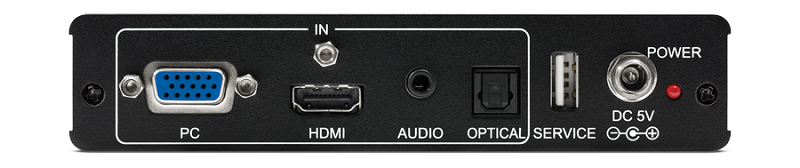

Inputs:
1 x HDMI female
1 x VGA female
1 x 3,5mm jack female (analog Audio)
1 x Toslink female (digital Audio)

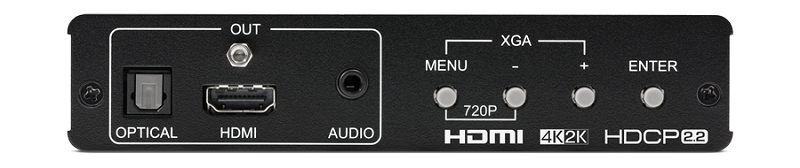

Outputs:
1 x HDMI female
1 x 3,5mm jack female (analog Audio)
1 x Toslink female (digital Audio)
Control options:
Frontpanel
Inputresolutions supported:
SVGA, XGA, SXGA, UXGA, WUXGA und 480p bis 4096x2160@50/ 60 Hz (4:4:4, 8-bit)
Outputresolutions supported:
SVGA, XGA, SXGA, UXGA, WUXGA und 480p bis 4096x2160@50/ 60 Hz (4:4:4, 8-bit)
Formats supported:
Video: HDMI 2.0/ 1.4, 3D, HDCP 2.2/ 1.1 und DVI 1.0
Audio: digital and analog Audio
