Switcher/ VideoScaler VGA, HDMI, DP to HDMI with Audio EL-5400
EL5400

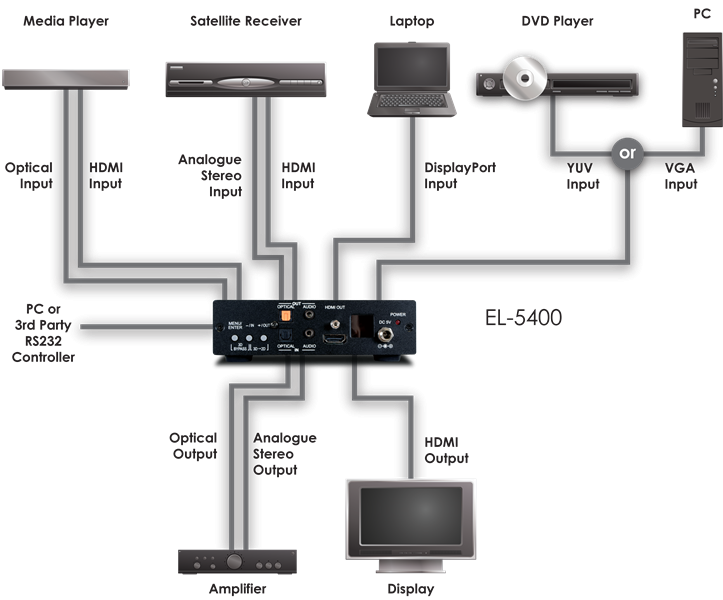

Allows the connection of VGA with YCbCr, YPbPr, 2 x HDMI (with HDCP) und DisplayPort with Audio and gives this as a HDMI signal with up to 1920 x 1200@60Hz or 1080p with analog or digital audio out.
Legen Sie dieses produkte in den Beraterkorb und fordern Sie anschlieÃend eine kostenlose Beratung an!
Description
Technical Specification

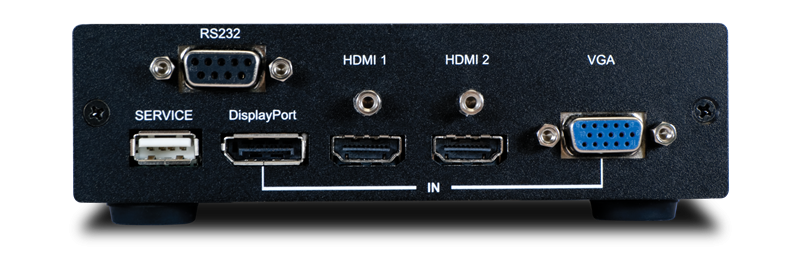

Inputs:
2 x HDMI
1 x DisplayPort
1 x 15 pin Sub D HD (VGA)
1 x digital Audio
1 x analog Audio

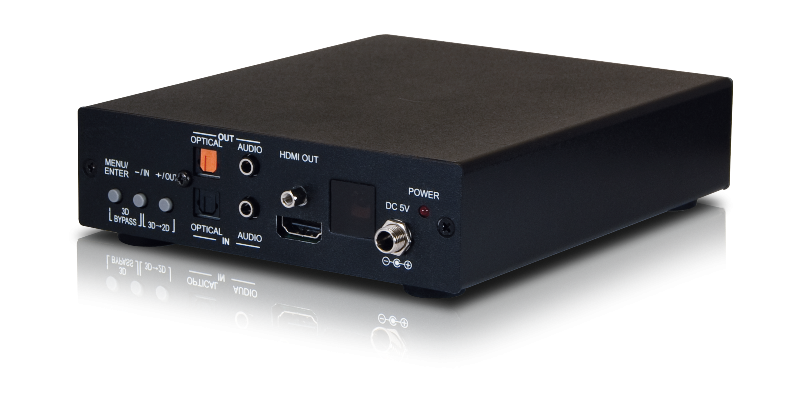

Outputs:
1 x HDMI
1 x digital Audio
1 x analog Audio
Control options:
RS232, IR
Inputresolutions supported:
640x350, 640x400, 720x400, VGA, SVGA, 848x480, XGA, 1152x864, 1280x768, 1280x800, 1280x960, SXGA, 1360x768, 1366x768, 1400x1050, 14490x900, 1440x1050, UXGA, WUXGA, 2560x1600 und 480p bis 1080p
(This resolutions don-t support all inputs)
Outputresolutions supported:
VGA, SVGA, XGA, SXGA, UXGA, WUXGA und 480p bis 1080p
Formats supported:
Video: HDMI 1.3, HDCP 1.1 und DVI 1.0
Audio: digitales und analoges Audio
