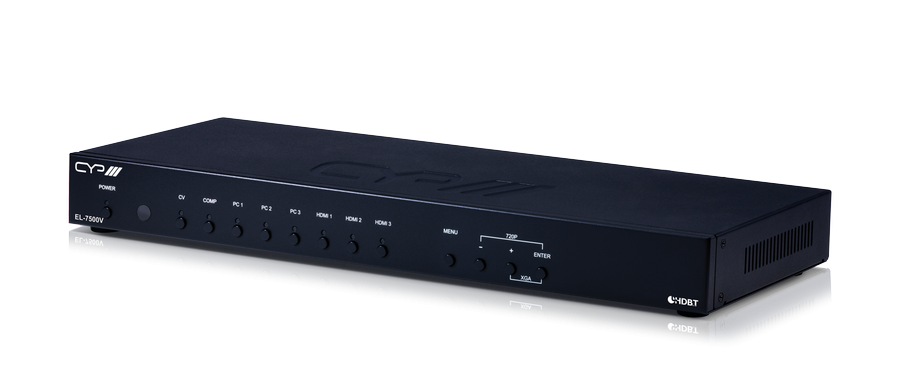

Switcher/ VideoScaler VGA, HDMI, Video to HDMI, HDBaseT, VGA with Audio EL-7500V
EL7500V
Allows the connection of 3 x HDMI, 3 x VGA with YCbCr, YPbPr, and Composite with Audio and gives this as a HDMI, HDBaseT and VGA signal with 640x480 to 1920x1200 or 480i to 1080p with analog or digital audio out.
The additional features: Aspect Ratio, Underscan/ Overscan and picture Adjustment settings
Legen Sie dieses produkte in den Beraterkorb und fordern Sie anschlieÃend eine kostenlose Beratung an!
Description
Technical Specification

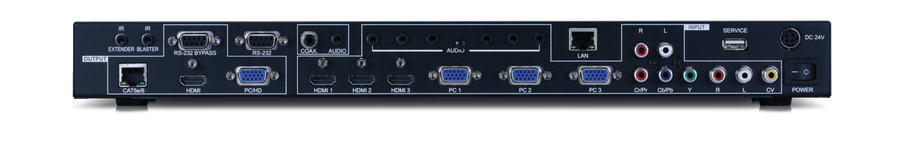

Inputs:
3 x HDMI
3 x 15 pin Sub D HD (VGA)
1 x YCbCr/ YPbPr
1 x FBAS
8 x analog Audio
Outputs:
1 x HDMI
1 x HDBaseT 48V
1 x VGA
1 x digital Audio
1 x analog Audio
Control options:
Frontpanel, Ethernet, RS232, IR
Resolutions supported:
640x480 to 1920x1200 or 480i to 1080p
Formats supported:
Video: HDMI 1.3, HDCP 1.1 und DVI 1.0
Audio: digitales und analoges Audio (DAC / ADC)
