Switcher/ VideoScaler Video, VGA, DVI to DVI with Audio CP-255ID
CP255ID

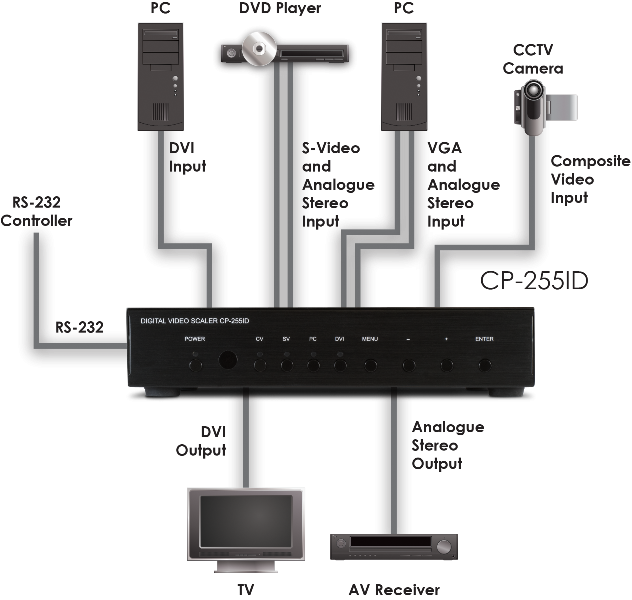

Allows the connection of FBAS-video, S-video, VGA and DVI (HDCP) with audio and gives this as a DVI signal with up to 1920x1200@60Hz or 1080p with analogue audio out.
€ 610,00 Excl. VAT .
Legen Sie dieses produkte in den Beraterkorb und fordern Sie anschlieÃend eine kostenlose Beratung an!
Description
Technical Specification

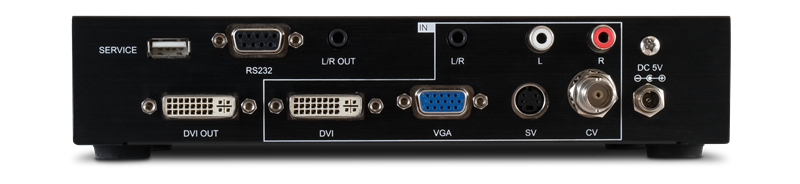

Inputs:
1 x BNC female (Composite)
1 x Mini-DIN female (S-Video)
1 x 2x RCA (analogue Audio)
1 x VGA female
1 x DVI female
1 x Mini Jack female (analogue Audio)
Outputs:
1 x DVI female
1 x Mini Jack female (analogue Audio)
Control options:

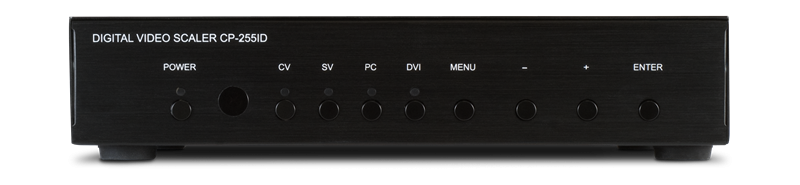

Frontpanel, RS232 or IR
Resolutions supported:
640x480 to 1920x1200 and 480i to 1080p
Formats supported:
Video: HDMI 1.2, HDCP 1.1 and DVI 1.0, PAL, NTSC
Audio: analogue audio
Producer
CYP Europe
Product
CP255ID
Gehäuse
Metall
Weight (kg)
0,97
Color
Schwarz
Power supply type
Extern
Stromversorgung
5V / 2,6A DC
Abmessungen BxHxT mm
215 x 47 x 165
Artikel Nr.
5598
