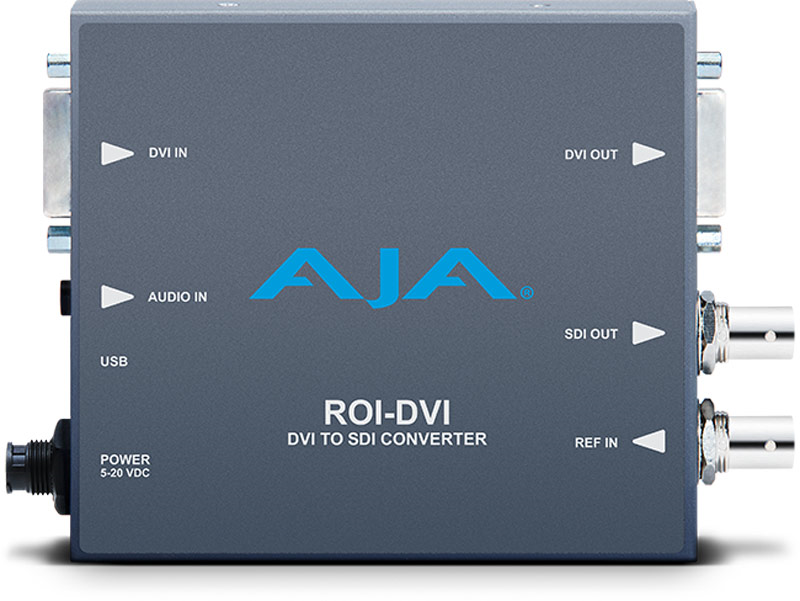

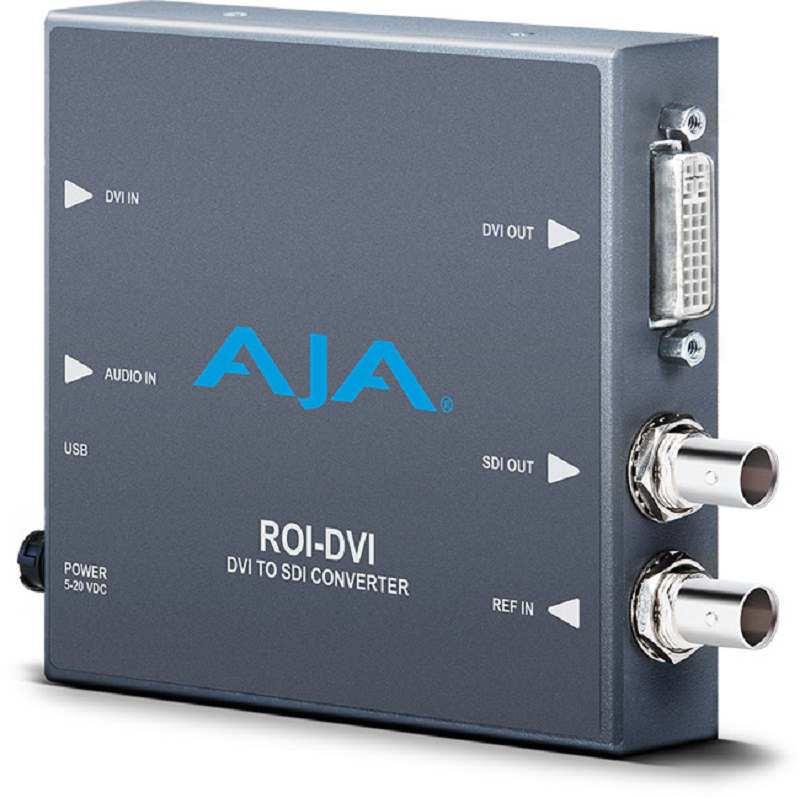

VideoScaler DVI to max. 3G-SDI with Audio ROI-DVI
ROIDVI
Inputs:
1 x DVI female
1 x analog Audio
Outputs:
1 x BNC female (SDI)
1 x DVI female
Control options
USB
Inputresolutions supported:
VGA to WUXGA and 525i to 1080p
Outputresolutions supported:
525i to 1080p
Formats supported:
Video: DVI, HDCP not supported and max. 3G-SDI
Audio: analog Audio (2 Channel)
€ 1.495,00 Excl. VAT .
Legen Sie dieses produkte in den Beraterkorb und fordern Sie anschlieÃend eine kostenlose Beratung an!
Description
Technical Specification
Inputs:
1 x DVI female
1 x analog Audio
Outputs:
1 x BNC female (SDI)
1 x DVI female
Control options
USB
Inputresolutions supported:
VGA to WUXGA and 525i to 1080p
Outputresolutions supported:
525i to 1080p
Formats supported:
Video: DVI, HDCP not supported and max. 3G-SDI
Audio: analog Audio (2 Channel)
Producer
AJA
Product
ROIDVI
Gehäuse
Metall
Weight (kg)
0,30
Color
Grau
Power supply type
Extern
Stromversorgung
5-18V / 8 Watt
Abmessungen BxHxT mm
146 x 23 x 102 mm
Artikel Nr.
6606
