VideoScaler UHD,4K/ HDMI2.0, HDCP2.2 HDMI auf 2 x HDMI SY-12H-4K22
SY12H4K22

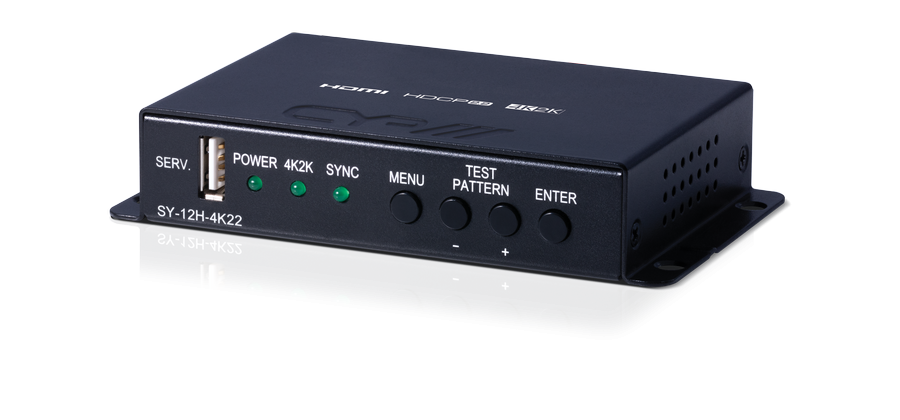

his SY-12H-4K22 is designed to upscale 1080p signals into 4K UHD (18Gbps) or downscale 4K UHD (18Gbps) signals into 1080p with synchronized digital audio output. The user friendly interface provides simple control of the unit while viewing the OSD directly on the HDMI outputs. The input signal can be outputted to both HDMI outputs simultaneously with a different resolution on each or the unit can generate a test pattern at a preferred video resolution for easy on-site display testing.
Legen Sie dieses produkte in den Beraterkorb und fordern Sie anschlieÃend eine kostenlose Beratung an!
Description
Technical Specification

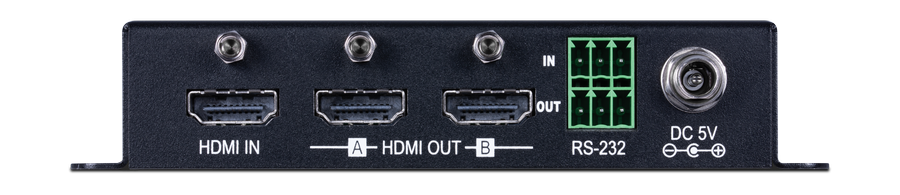

Input:
1 x HDMI fe
1 x Termination Block RS232
Output:
2 x HDMI fe
1 x Termination Block RS232

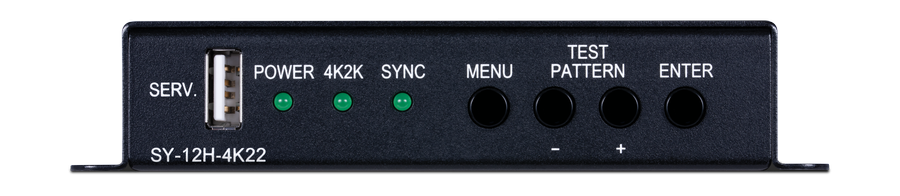

Controll: Front button controll, RS 232
supportet Resolution:
Bis zu 3840×2160@24/25/30/50/60Hz & 4096×2160@24/25/30/60Hz
supportet Formats:
Video: HDMI2.0, HDCP2.2
Audio: Analog Stereo, LPCM 2/5.1/7.1CH, Dolby Digital 2/5.1CH, DTS 2/5.1CH
